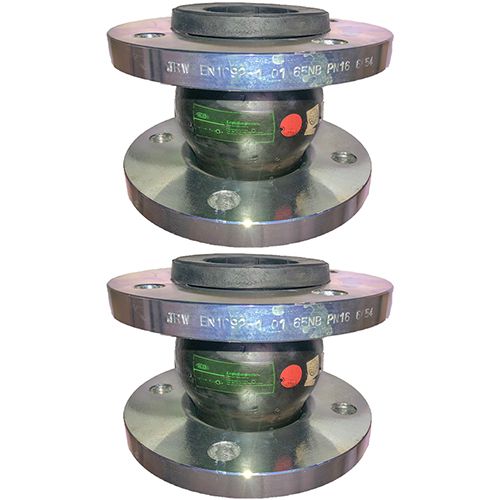

Designed to accommodate vibration the EPDM D Type single sphere expansion joint is suitable for hot and cold water, LTHW and primary systems
Flanged Untied Expansion Joints require the pipework to be securely anchored and guided for safe and correct operation
If there are high levels of vibration/ pressure at the pumps location then it is advised that tied expansion bellows are used and were working pressures are over 10BarG then tied units are required regardless of fixing points in the pipeline
Max Operating Conditions:
- 16BarG @ 80oC
- 9BarG @ 105oC
Minimum Operating Temp: -20oC
Test Pressure: 24BarG @ Ambient Temp
Bellow Length 130mm face to face
Construction Materials
Inner Tube: EPDM Compound
Reinforcement: Nylon® textile cord
Cover: EPDM Compound
Flanges: S235 JR Carbon Steel Zinc Plated, drilling according to BS4504/EN1092
Tie Bars (if fitted): Carbon Steel
NOT Suitable for secondary domestic hot water
More Information
| SKU |
RBJR065PN16130 |
| Weight |
11.0 Kg |
| Dimensions |
130mm length face to face |
| Manufacturer |
Anchor |
| Material |
Carbon Steel |
| Max Pressure |
16BarG @ 80oC |
| Max Temperature |
105oC @ 9BarG |
| Connection Type |
65mm Flanged |
| Suitable for Heating |
Yes |
