ABS J12 Submersible Drainage Pump Without Floatswitch 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

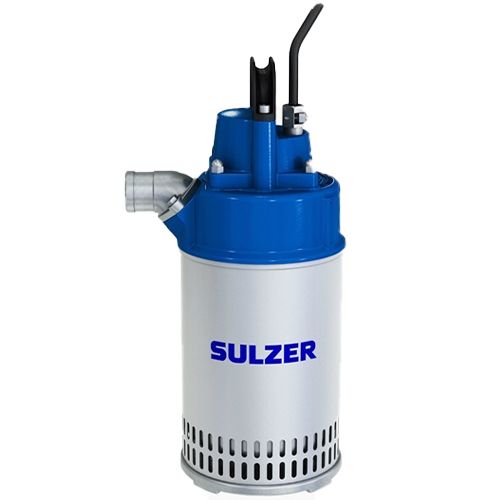

ABS J12 Submersible Drainage Pump Without Floatswitch 415v - J32156231111112
The J12 submersible drainage pump is suitable for pumping water and dirty water mixed with light abrasives. The low weight and compact design ensure convenient transport, handling, and installation. Plug in without having to worry about overheating. Built-in thermal protection protects the motor from overheating. Impeller in high chrome alloy steel ensures a long lifetime and high efficiency. A double outer casing and good heat convection enable the pump to operate continuously at low levels or even run dry without damaging the motor.
Save time and money with easy on-site service. Modular design lowers the overall service costs. By removing the top cover of the pump, you can easily check the electrical junction box. Environmentally safe white oil is used in the oil casing for easy inspection of seal conditions.
Features:
- Three-phase squirrel-cage induction motor, 50 Hz
- Built-in thermal switches in the stator winding
- Double mechanical seal in oil bath (primary seal: Silicon carbide on silicon carbide, secondary seal: Silicon carbide on silicon carbide
- Upper bearing: Single-row deep groove ball bearing, Lower bearing: Single-row deep groove ball bearing
- Maximum submergence of 20m
- 20 metre cable
Applications:
- Dewatering in construction
- Dewatering in tunnelling
- Flood control
- Mine water management
Discharge Connections
1 ½", 2" (standard), 2 ½", 3" hose connections 2", 2 ½", 3" B.S.P. threaded connections
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J32156231111112 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 16.0 Kg |
| Dimensions | 510mm (h) x 265mm (w) |
| Motor Size (kW/W) | P2 = 0.9kW |
| Full Load Current (FLC) | 2.2A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2770rpm |
| Cable Length | 20 metres |
| Max Flow | 31m3/hr |
| Max Head | 15m |
| Max Temperature | 40°C |
| Material | Stainless Steel |
| Impeller Material | White Cast Iron |
