ABS Nirolift Lifting Station - Pump Not Included
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ABS Nirolift Lifting Station - 07565408
Synthetic, single pumping station, designed as a complete wastewater sump for below-ground installation and for fitting with Sulzer pumps from the Robusta, Coronada and MF ranges.

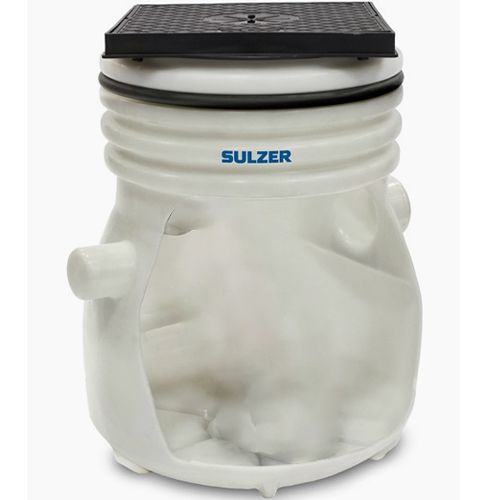

The Nirolift is a polyethelyne, standalone sump for below-ground use. It provides effluent pumping from washing machines, sinks, dishwashers, showers and bathtubs from buildings and areas below the sewer level in accordance with EN 12050-2.
Features:
- Globular shape for extra strength, with PP-30GF manhole cover featuring floor run-off and option of odour lock with aeration and venting
- Universally adjustable in height and can be swivelled, thus allowing easy alignment with floor levels and tilting patterns, independent of the inflow or direction of the discharge lines. A 150mm sump extension kit is available as an accessory

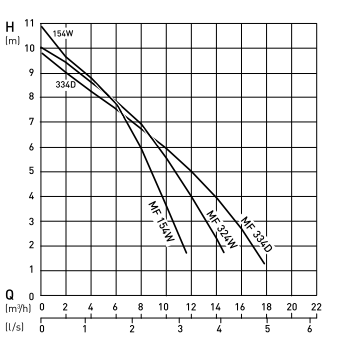

- Designed for one Coronada 250 or MF 154-334 pump with KS float switch, or for one Robusta 200 pump with built-in level control

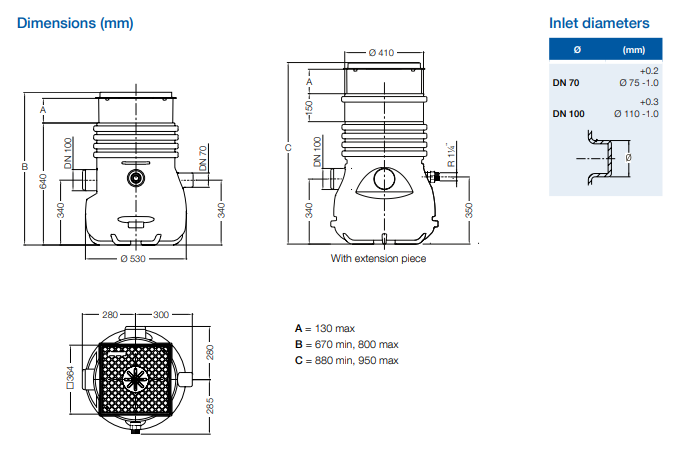

- Two inflow ports DN 100 at 90° offset for DIN push-on connection. One port DN 70 for venting and use as a cable duct (supplied as standard with plug/cable inlet seal). One discharge port DN 40 with R 1 1/4" PVC female adaptor
- Plastic cover for protection of the floor grating during installation work supplied as standard
- Kit available as an accessory for sealing top of tank to damp-proof course
- Suitable for use as a floor drain. Alternatively a stainless steel insert for fitting into the manhole cover to close and seal the run-off vent is available as an accessory
- Maximum allowable temperature of medium 40°C, short term to 60°C (max 5 minutes)
- The set includes pipework, polypropylene cover and grid
Applications:
- For the effective dewatering of domestic and commercial wastewater from buildings and areas below the sewer level in accordance with EN 12050-2
- The Nirolift is suitable only for the pumping of faecal-free wastewater such as the discharge from washing machines, sinks, dishwashers, showers and bathtubs
- For applications where pumping cannot be interrupted, the Sanisett twin pumping station should be installed
**Please note that the required pump must be ordered separately and fitted. The following models may be used with the Nirolift: Robusta 200W/TS, Robusta 200CW/TS, Coronada 250W/KS, and MF 154W/KS-334D/KS.**
| SKU | 07565408 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 11.5 Kg |
| Max Temperature | Maximum allowable temperature of medium 40 ºC, short term to 60 ºC (max. 5 minutes) |
| Material | Polyethylene |
