ABS Piranha 09W KS Submersible Grinder Pump Without Floatswitch 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

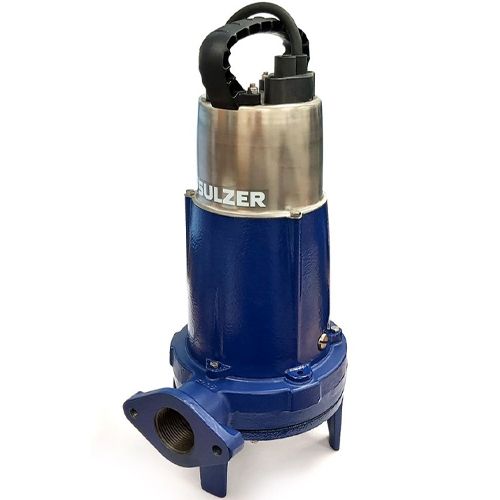

ABS Piranha 09W KS Submersible Grinder Pump Without Floatswitch 240v - 05106502
Submersible pumps for problem-free pumping of sewage containing faecal matter in pipe lines from 1¼” (DN 32). Piranha submersible pumps have been designed for effective and economic dewatering using discharge lines of small diameter, in private, municipal and industrial areas. The water pressure-tight, encapsulated fully flood-proof motor and the pump section form a compact, robust, unit construction. The stainless steel motor shaft is supported in lubricated-for-life ball bearings.
Features:
- Unique Piranha shredding system capable of shredding items such as cloths and plastic bags
- For the pumping of wastewater containing sewage, offal, organic and industrial effluent
- Piranha 08 and 09 fitted with MF modular motor
- Small discharge lines from 1¼” (DN 32)
- Installations are possible where large ground undulations are present
- Piranha 08 and 09 have capacitor in upper lid and do not require a control box
- Low installation costs due to small diameter discharge pipework
- Spiral bottom plate and stationary cutter ring combined witha shredding rotor located before the impeller, for optimum blockage-free running
Applications:
- Sewage removal from living units and houses in remote settlements where the laying of a conventional sewer would be too expensive, where large ground undulations are present or where it is only possible to lay pipe lines of small diameter
- Piranha 08 and 09 are specially designed for private and domestic applications
- Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
| SKU | 05106502 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 23.0 Kg |

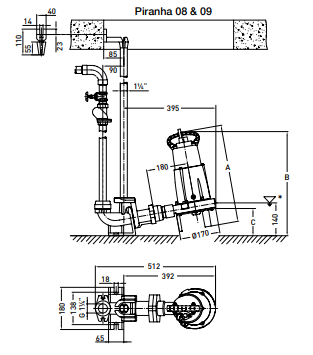

| Dimensions | 416mm (h) x 220mm (dia) |
| Connection Type | 1 1/4 Inch Flanged |
| Motor Size (kW/W) | P2 = 2.25kW |
| Full Load Current (FLC) | 13.50A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 3400rpm |
| Cable Length | 10 metres |
| Max Flow | 14m3/hr |
| Max Head | 31m |
| Max Temperature | 40°C, or short term to 60°C (max. 5 minutes) |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
