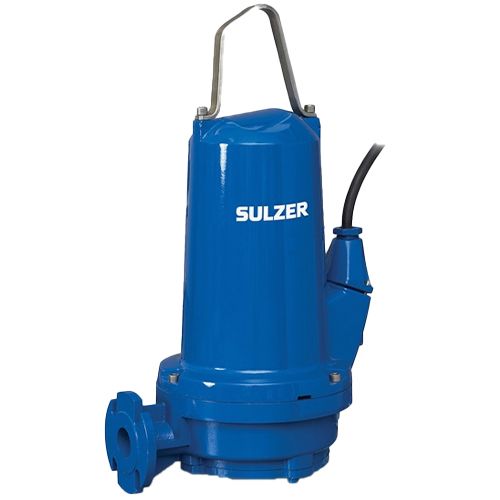

ABS Piranha PE30/2C Submersible Grinder Pump Without Floatswitch 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ABS Piranha PE30/2C Submersible Grinder Pump Without Floatswitch 415v - PXN231111211111
Submersible pumps for problem-free pumping of sewage containing faecal matter in pipe lines from 1¼” (DN 32). Piranha submersible pumps have been designed for effective and economic dewatering using discharge lines of small diameter, in private, municipal and industrial areas. The water pressure-tight, encapsulated fully flood-proof motor and the pump section form a compact, robust, unit construction. The stainless steel motor shaft is supported in lubricated-for-life ball bearings.
Features:
- Unique Piranha shredding system capable of shredding items such as cloths and plastic bags
- For the pumping of wastewater containing sewage, offal, organic and industrial effluent
- Piranha PE30/2C - PE110/2E: Premium Efficiency IE3 with NEMA Class A temperature rise, insulation class H, protection type IP 68, Ex only
- Small discharge lines from 1¼” (DN 32)
- Installations are possible where large ground undulations are present
- Low installation costs due to small diameter discharge pipework
- Spiral bottom plate and stationary cutter ring combined witha shredding rotor located before the impeller, for optimum blockage-free running
Applications:
- Sewage removal from living units and houses in remote settlements where the laying of a conventional sewer would be too expensive, where large ground undulations are present or where it is only possible to lay pipe lines of small diameter
- Sewage removal from motorway resting sites, communal buildings and for renovation of buildings or areas of a city
- For use in slaughter houses, food processing plants, paper factories, agriculture and similar areas
- Maximum allowable temperature of the medium is 40 °C, or short term to 60 °C (max. 5 minutes)
| SKU | PXN231111211111 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 90.0 Kg |

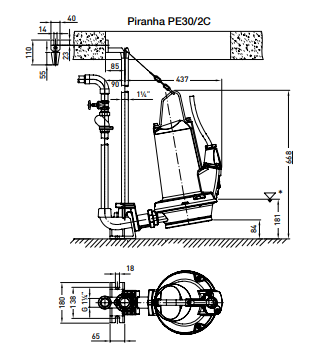

| Dimensions | 606mm (h) x 300mm (d) |
| Connection Type | 1 1/4 Inch Flanged |
| Motor Size (kW/W) | 3kW |
| Full Load Current (FLC) | 5.58A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 10 metres |

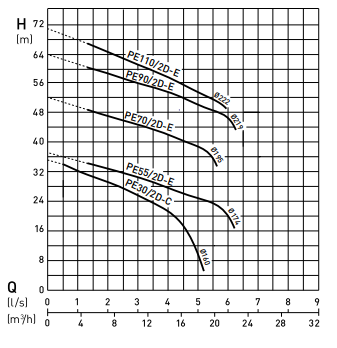

| Max Flow | 18.5m3/hr |
| Max Head | 34m |
| Max Temperature | 40°C, or short term to 60°C (max. 5 minutes) |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
