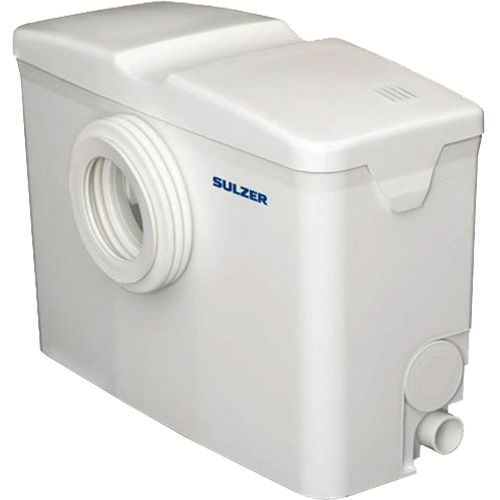

ABS Piranhamat 100 Lifting Station 240v

ABS Piranhamat 100 Lifting Station 240v - 07565092

The Piranhamat 100 pumping unit has been designed for the removal of effluent from a WC located below the sewer backwash level or where the effluent cannot flow by gravity into a sewer. It is also possible to connect one hand-wash basin, one shower, and one bidet to the unit. Thanks to its compact design and the use of small bore piping, the Piranhamat 100 pumping unit is suitable for installation in an existing house or during the renovation of old buildings. Where usage is by members of the public and cannot be monitored, or where more effluent sources are to be connected, installation of the Sanimat series is recommended.

Construction:

• Modern, gas- and odour-tight white plastic tank of high quality synthetic material, resistant to all common toilet cleaning fluids
• Ready for use, and fitted with a powerful Piranha grinder pump which is controlled automatically by the integral level control system
• Push-on, self-sealing connection for a toilet at the rear of the unit, and push-in connection ports for one wash-hand basin, one shower and one bidet at the sides. The discharge connection can be made on either side of the unit and means that the discharge pipe can exit left or right as is found most suitable for the particular installation
• Equipped with an electronic control unit with high level alarm
• Non-return flap valve on the discharge line
• Maximum allowable temperature of the medium is 40°C; or up to 60°C for a maximum of five minutes
• The Piranha pump itself is fitted with a special shredding device that reduces the medium to a size that can easily be pumped through a small bore pipe system of a size from 25mm diameter. This ensures blockage-free disposal of faecal matter, toilet paper of various thicknesses, and also sanitary articles which might be accidentally dropped into the toilet

Features:

• Compact unit ready to plug in and suitable for direct euro toilet connection
• With Sulzer patented Piranha cutting system for pumping faecal matter and also sanitary articles that might be accidently dropped into the toilet
• Automatic level control and alarm
• Attractive corrosion-resistant synthetic tank
• Maintenance-friendly unit with easy access lid (no screws)
• Carbon filter fitted to reduce odours
• Non-return valve and 2m cable with Schuko plug supplied as standard
