ABS Piranhamat 701 Lifting Station 415v - 07565158

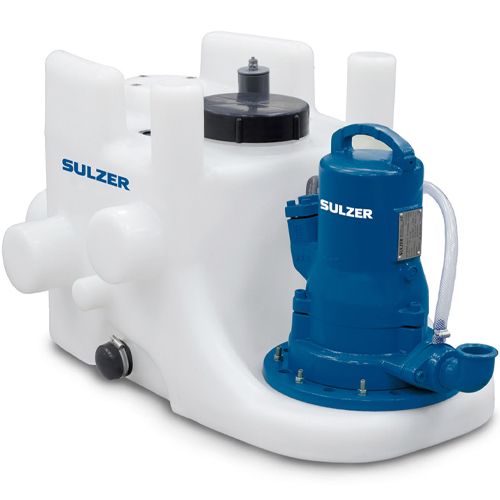

Flood-proof lifting station for the automatic pumping of sewage from areas below the backwash level in accordance with EN 12050-1. The Piranhamat 701 is used for the reliable and economic discharge of wastewater under pressure using small diameter discharge lines. Suitable for new installations or for renovation of old buildings.
Features:
- Ready for installation; robust, compact tank, suitable for single-family houses
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening
- Fitted with Piranha submersible grinder pump for problem-free pumping of sewage and wastewater containing faecal matter in pipe lines from 1¼" diameter (DN 32)
- Nine horizontal inlet ports (6 x DN 100, 3 x DN 40) and four vertical (2 x DN 70, 2 x DN 40). One DN 70 port is needed as a vent line. DN 40 is suitable for the connection of a hand membrane pump
- Cast iron discharge outlet with threaded flange G 1¼"
- Shredding system consisting of a spiral bottom plate containing a stationary cutter ring with cutting edges and a shredding rotor located below the impeller, reduces the medium for optimum blockage-free running
- Shaft sealing between motor and hydraulic section by means of a single mechanical seal of silicon carbide, independent of direction of rotation, resistant to temperature shock and to dry running. Motor side: lip seal, oil lubricated
- Motor shaft is mounted in lubricated-for-life, maintenance-free ball bearings
- Maximum allowable temperature of medium is 40ºC, or up to 60ºC intermittent for a maximum of five minutes
Tank:
- Synthetic, corrosion-resistant, gas- and odour-tight tank, in accordance with EN 12050-1. Supplied as standard with pump, and control panel with automatic level control and alarm
- Capacity - 70 litres
Motor:
- Water pressure sealed, squirrel cage 2-pole induction motor, with double shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent
| SKU | 07565158 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 70.0 Kg |

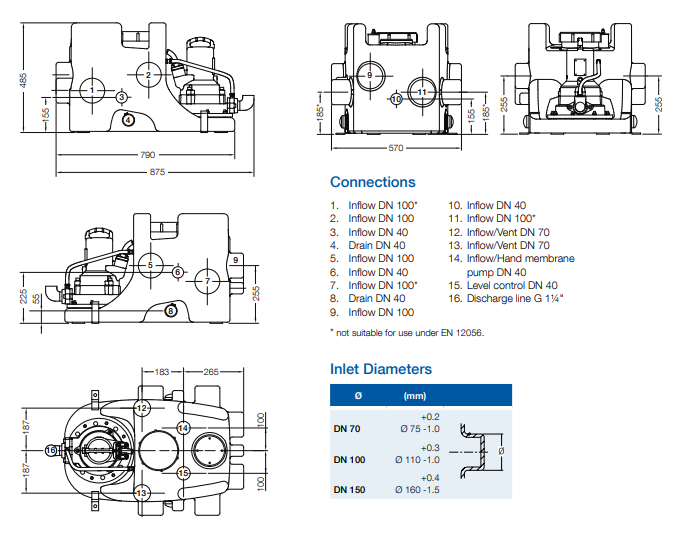

| Dimensions | 570mm (w) x 485mm (h) x 875mm (d) |
| Motor Size (kW/W) | P2 = 1.7kW |
| Full Load Current (FLC) | 4.0A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 4 metres |

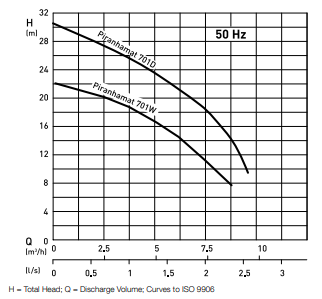

| Max Flow | 9.5m3/hr |
| Max Head | 30m |
| Max Temperature | Maximum allowable temperature of medium is 40ºC, or up to 60ºC intermittent for a maximum of five minutes |
| Material | Polyethylene |
