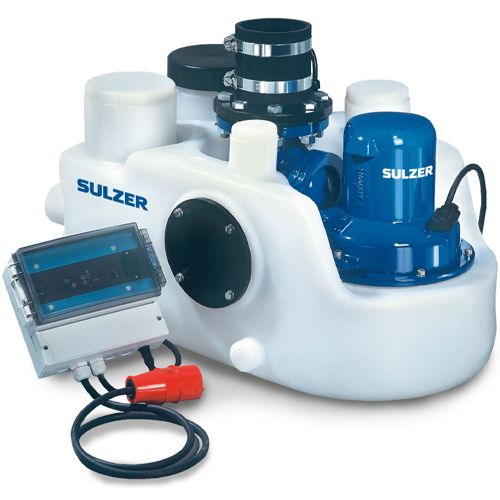

ABS Sanimat 1000 Lifting Station 240v - 07565186
Flood-proof, single lifting station, for the removal of wastewater and sewage from areas below the sewer level in accordance with EN 12050-1. Ideal for effective dewatering of houses with one or two living units and for new buildings or renovations.
Features:
- Plug-in unit with earthed plug (230V) and phase sequence changeover facility
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
- Trouble-free maintenance thanks to simple removal of the motor housing
- Four horizontal inlet ports (2 x DN 100, 2 x DN 70) and two vertical (1 x DN 100, 1 x DN 150). Vertical vent line DN 70. DN 40 port is suitable for the connection of a hand membrane pump
- DN 100 horizontal inlet ports are at different levels (180 and 220 mm) allowing for flexible installation connection
- Direct toilet connection possible in the case of wall-mounted WC units
- Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100)
- Integrated valve system consisting of ball-type, non-return valve
- Very quiet running thanks to 4-pole, slow-running motor
- Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage
- Sloping container floor prevents deposits
- Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery
- Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Tank:
Corrosion resistant, gas- and odour-tight in accordance with EN 12050-1. Supplied as standard with pump, automatic level control and control box, non-return valve, 4" sleeve and flange. Capacity: 70 litres.
Motor:
Water pressure sealed, squirrel cage 4-pole induction motor, with triple shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent. Insulation: Class F for 155 ºC. Protection type: IP68
| SKU | 07565186 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 55.0 Kg |

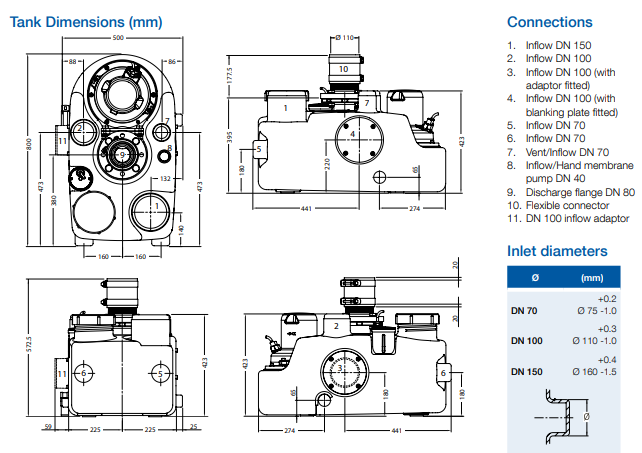

| Dimensions | 572.5mm (h) x 500mm (w) x 800mm (d) |
| Motor Size (kW/W) | P2 = 1.3kW |
| Full Load Current (FLC) | 8.4A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 1450rpm |
| Cable Length | 4 metres |

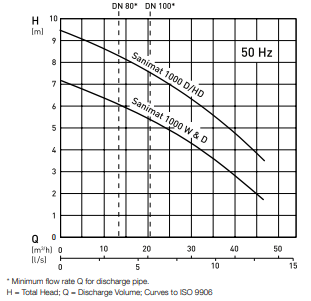

| Max Flow | 47m3/hr |
| Max Head | 7m |
| Max Temperature | Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes) |
| Material | Polyethylene |
