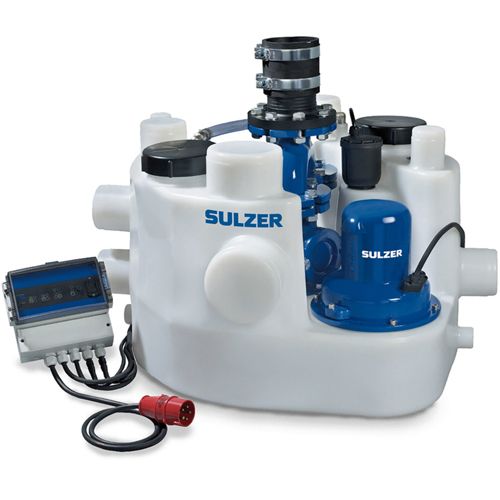

ABS Sanimat 1002 HD Lifting Station 415v - 07565192
Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.
Features:
- Plug-in unit with CEE plug and phase sequence changeover facility
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
- Trouble-free maintenance thanks to simple removal of the motor housing

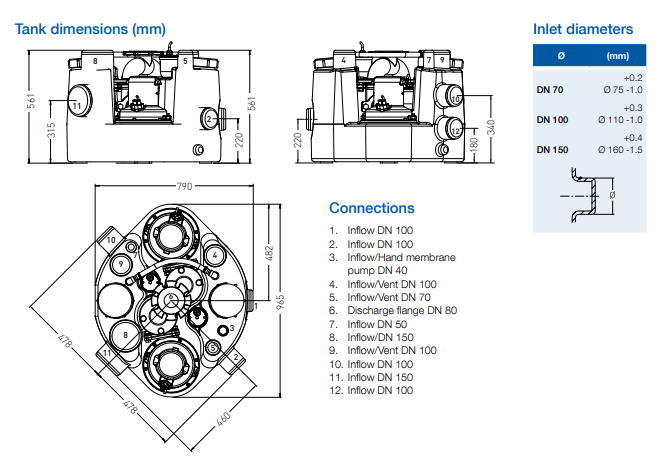

- Five horizontal inlet ports (4 x DN 100, 1 x DN 150) and three vertical (2 x DN 100, 1 x DN 150). Vertical vent line DN 70 .Two small diameter ports (DN 40/50) suitable only for wastewater. DN 40 is suitable for connection of a hand membrane pump
- Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100)
- Direct toilet connection possible in the case of wall-mounted WC units
- Integrated valve system consisting of two ball-type, non-return valves
- Two pumps; very quiet running thanks to 4-pole, slow-running motors
- Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both faecal and faecal-free sewage
- Sloping container floor prevents deposits
- Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery
- Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Tank:
Corrosion resistant, gas- and odour-tight in accordance with EN 12050-1. Supplied as standard with pump, automatic level control and control box, non-return valve, 4" sleeve and flange. Capacity: 140 litres.
Motor:
Water pressure sealed, squirrel cage 4-pole induction motor, with triple shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent. Insulation: Class F for 155 ºC. Protection type: IP68
| SKU | 07565192 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 117.0 Kg |
| Dimensions | 965mm (w) x 790mm (d) x 561mm (h) |
| Motor Size (kW/W) | P2 = 2.20kW |
| Full Load Current (FLC) | 5.2A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1450rpm |
| Cable Length | 4 metres |

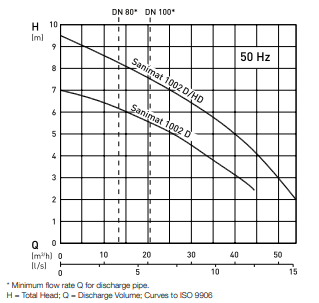

| Max Flow | 55m3/hr |
| Max Head | 9.5m |
| Max Temperature | Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes) |
| Material | Polyethylene |
