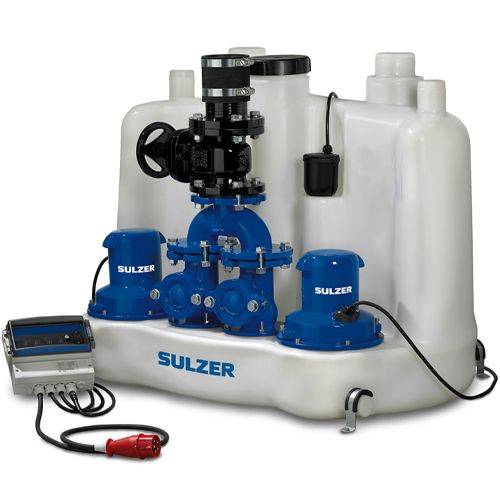

ABS Sanimat 2002 XD Lifting Station 415v - 07565204
Flood-proof, double lifting station, for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of domestic residences or commercial developments. Suitable for new installations or for renovation of old buildings.
Features:
- Plug-in unit with CEE plug and phase sequence changeover facility
- Easily transported and fitted. Compact dimensions allow passage through a standard door opening
- Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high water alarm
- Trouble-free maintenance thanks to simple removal of the motor housing

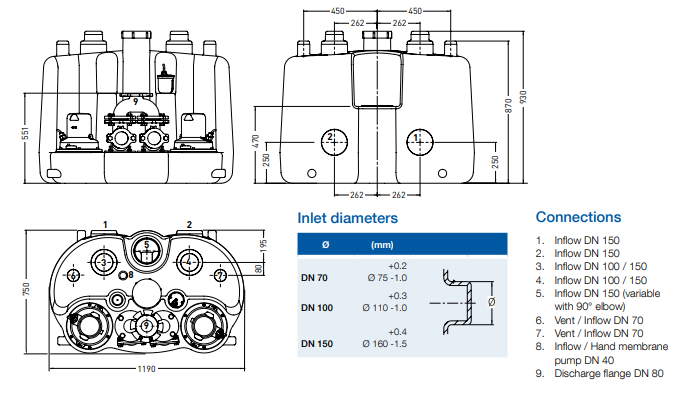

- One variable inlet (DN 150) with 90° elbow, two horizontal (DN 150), and five vertical (2 x DN 100 / 150, 2 x DN 70, 1 x DN 40). One DN 70 port is needed as a vent line. DN 40 port is suitable for the connection of a hand membrane pump.
- Discharge flange DN 80, plus flanged socket with 4" sleeve and clips (for discharge pipe DN 80/100)
- Direct toilet connection possible in the case of wall-mounted WC units
- Integrated valve system consisting of two ball-type, non-return valves
- Option of 2- or 4-pole motors
- Vortex impeller with large free passage, for reliable pumping of both faecal and faecal-free sewage
- Sloping container floor prevents deposits
- Built-in mains alarm (visual and acoustic), can be converted to mains-independent by inserting battery
- Maximum allowable temperature of medium 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Tank:
Synthetic, corrosion-resistant, gas- and odour-tight in accordance with EN 12050-1. Supplied as standard with pumps, junction piece with integral non-return valve system and cleaning openings, 4" sleeve and flange, automatic level control and control panel. Capacity: 320 litres.
Motor:
Water pressure sealed, squirrel cage 2 and 4-pole induction motor, with triple shaft seals and oil chamber. Electronic monitoring of stator temperature and overcurrent. Insulation: Class F for 155 ºC. Protection type: IP68
| SKU | 07565204 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 132.0 Kg |
| Dimensions | 1190mm (w) x 930mm (h) x 750mm (d) |
| Motor Size (kW/W) | P2 = 3kW |
| Full Load Current (FLC) | 6.2A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900rpm |
| Cable Length | 4 Metres |

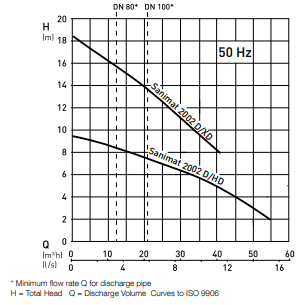

| Max Flow | 40m3/hr |
| Max Head | 18m |
| Max Temperature | Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes) |
| Material | Polyethylene |
