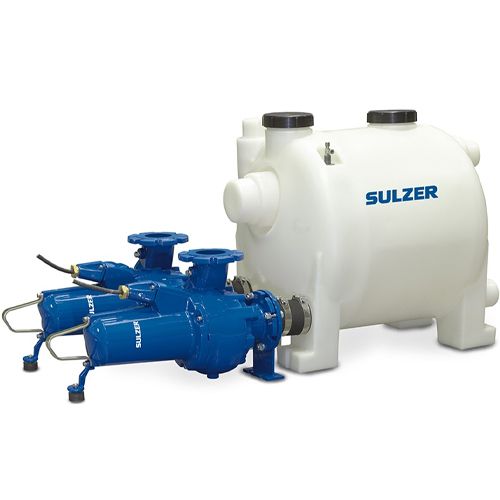

ABS Sanimat 4002 Lifting Station With XFP100C-CB1.3-PE22/4 415v - 62880077100CB1.3
**Please note this set includes 1 x assembly, 2 x XFP100C-CB1.3 pumps, 1 x adaptor kits, 2 x accessory kits and 1 x control system.**
Flood-proof lifting station for automatic pumping of wastewater and sewage from areas below the backwash level in accordance with EN 12050-1. Ideal for effective dewatering of areas such as apartment blocks, hospitals, hotels and large commercial developments. Suitable for new installations or for renovation of old buildings.
Features:
- Sturdy construction; easily transported and fitted. Compact dimensions allow passage through a standard door opening

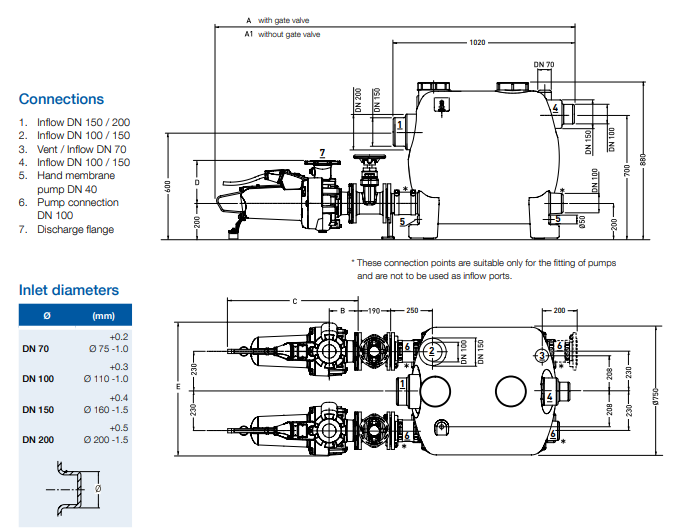

- Six inflow port options: four horizontal (1 x DN 100, 2 x DN 150, 1 x DN 200) and two vertical (1 x DN 100, 1 x DN 150). Also features one connection (DN 70) for a vent pipe and two connections (Ø 50 mm) for connection of a hand membrane pump
- Fitted with pneumatic level control pipe for automatic level control
- XFP pumps are designed for continuous running (S1) without additional cooling, and feature a Premium Efficiency motor, blockage-free Contrablock Plus hydraulics, seal monitoring and temperature control
- Pump discharge DN100 with flange connection
- Control panel featuring bubble compressor and mains-independent alarm with built-in backup battery
- With Premium Efficiency IE3 motor, double mechanical seals, oil chamber, seal monitoring, and thermal sensors in the stator to prevent overheating
- Synthetic, corrosion-resistant, gas- and odour-tight tank in accordance with EN 12050-1. Supplied as standard with pumps, mounting kits, control panel and pneumatic level control pipe
- Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes)
Appications:
- Sewage and wastewater containing fecal matter
- Discharge from apartment blocks, hospitals, hotels, and large commercial developments including both new and renovated structures
| SKU | 62880077100CB1.3 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 245.0 Kg |
| Dimensions | 2044mm (w) x 880mm (h) x 750mm (d) |
| Discharge Dimension | DN100 |
| Motor Size (kW/W) | P2 = 2.2kW |
| Full Load Current (FLC) | 4.6A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 1450rpm |
| Cable Length | 10 metres |
| Max Flow | 125m3/hr |
| Max Head | 10m |
| Max Temperature | Maximum allowable temperature of medium is 40 ºC, or up to 60 ºC intermittent (max. 5 minutes) |
| Material | Polyethylene |
| Impeller Material | Cast Iron |
