ABS Sanimax R202-10m Pumping Station 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ABS Sanimax R202-10m Pumping Station 240v - 07565129

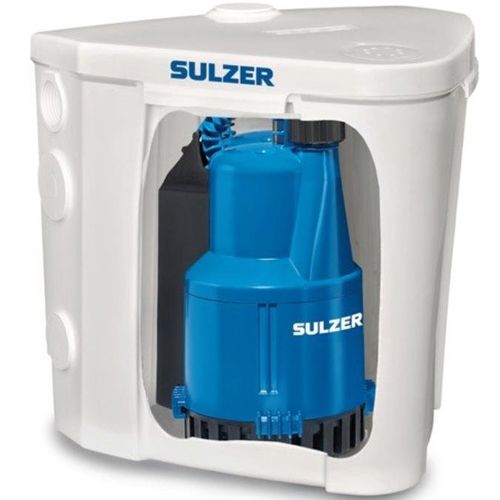

Complete wastewater pumping unit for installation at floor level and fitted with a submersible pump from the Robusta range. Suitable for the removal of liquids containing solid particles up to 10mm from wash-hand basins, domestic washing machines, or showers, from areas below the sewer level in accordance with EN 12050-2.
Main Benefits:
- ready-for-use, plug-in unit with Schuko plug
- supplied as standard with pump, automatic level control and non-return valve. A separate check valve should be used at heads over 5 metres
- compact dimensions allow passage through a standard door opening
- alarm float switch available as an accessory
- seven ports (5 x 40mm, 2 x 50mm), ready-prepared with seals, can be used for inflow, discharge, power cable, or connection to a washing machine via a flexible hose (3/4" adaptor supplied)
- odour-tight lid with odour lock and venting, including charcoal odour filter and overflow protection
- easy to transport, with simple discharge line connection
- synthetic, corrosion-resistant, gas and odour-tight tank, in accordance with EN 12050-2
- water pressure sealed, squirrel cage 2-pole induction motor
- 10 metre cable
Applications:
- commercial wastewater without toilet waste
- domestic wastewater without toilet waste
**For the replacement pump to fit this pumping station, please see part code 01135076.**
**Fastening kits are only required when replacing a pump in an existing lifting station.**
| SKU | 07565129 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 6.8 Kg |

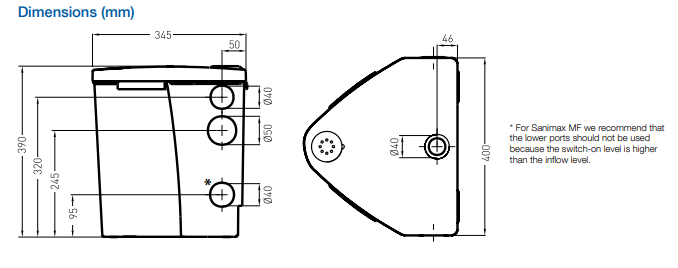

| Dimensions | 390mm (h) x 400mm (w) x 345mm (d) |
| Motor Size (kW/W) | P2 = 0.16kW |
| Full Load Current (FLC) | 1.6 A |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2900 rpm |
| Cable Length | 10 metres |

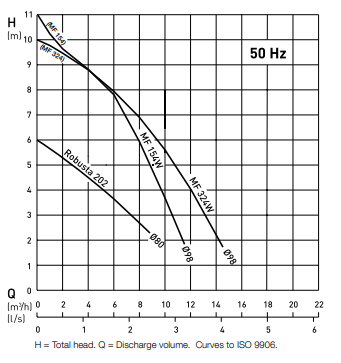

| Max Flow | 9m3/hr |
| Max Head | 6m |
| Max Temperature | Maximum allowable temperature of medium 40 °C; short term to 60 °C (max. 5 minutes) |
| Material | Polypropylene |
| Impeller Material | Polyamide |
