ABS Sanisett Below Ground Lifting Station
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

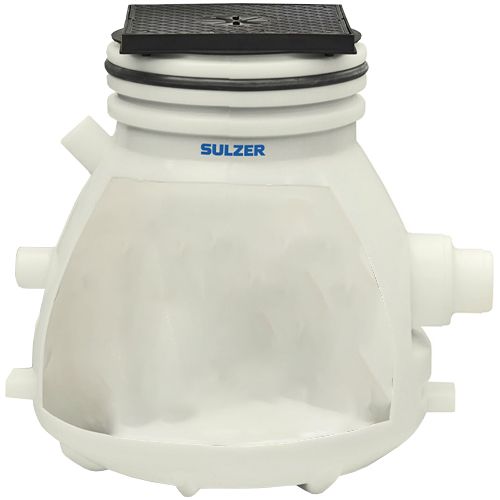

ABS Sanisett Below Ground Lifting Station - 07565409
Synthetic, single or twin pumping station, designed as a complete wastewater sump for below ground installation and for fitting with pumps from the Robusta, Coronada, IP, Piranha and MF ranges.
Features:
- Globular shape for extra strength. The below-ground version has PP-30GF manhole cover with floor run-off and option of odour lock with aeration and venting
- Universally adjustable in height and can be swivelled, thus allowing easy alignment with floor levels and tiling patterns, independent of the inflow or direction of the discharge lines. A 150mm sump extension kit is available as an accessory
- Sanisett 1 is designed for one KS version pump (Coronada, IP, Piranha, MF) or pump with built-in level control (Robusta)
- Sanisett 2 is designed for two non-KS pumps and has a separate KS level control system, with support bracket for discharge line junction piece and KS float switches
- Two inflow ports at 90°C offset (DN 100/150) for DIN push-on connection. Two DN 70 inflow ports one for venting and use as a cable duct (supplied as standard with plug / cable inlet seal). One discharge port DN 50 with R 1½" PVC female adaptor
- Plastic cover for protection of the floor grating during installation work supplied as standard

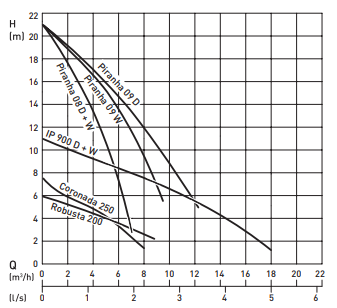

- Heads up to 20m with Piranha 08/09 pumps
- Suitable for use as a floor drain. Alternatively a stainless steel insert for fitting into the manhole cover to close and seal the run-off vent is available as an accessory
- Maximum allowable temperature of medium 40°C, short term to 60°C (max 5 minutes)
Applications:
- For the effective dewatering of domestic and commercial wastewater (faecal-free), from buildings and areas below the sewer level in accordance with EN 12050-2
- In addition to the pumping of wastewater from washing machines, sinks, dishwashers, showers and bathtubs, the Sanisett is suitable also for the pumping of sewage containing faecal matter outside of areas covered by EN when installed using Piranha pump(s)
- For applications where pumping cannot be interrupted the twin pumping station unit should be installed
**Please note that the pump(s), fitting kits and controls are not included and must be purchased separately.**
| SKU | 07565409 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 14.0 Kg |
| Max Temperature | Maximum allowable temperature of medium 40 ºC, short term to 60 ºC (max. 5 minutes) |
| Material | Polyethylene |
