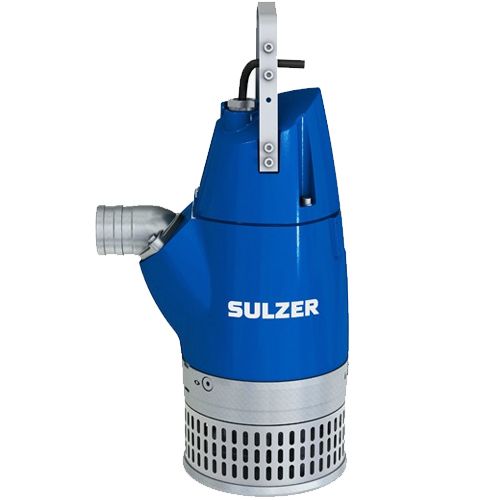

ABS XJ 25 Medium Head Submersible Drainage Pump 415v - J61356231111111
The XJ 25 submersible drainage pump is ideal for pumping water and dirty water mixed with light abrasives.
Features:
- Plug-and -pump installation without having to worry about overheating
- Reliable, trouble-free operation also at low water levels
- Modular design increases serviceability and makes it easy to convert the pump for different hydraulic requirements
- Maximum submergence - 20 metres
- Strainer hole: 7.5 x 22mm
- Max number of starts - 30 per hour
- Direct on line start with built in contactor. Pumps to be used with VFD or 1000v must have terminal block instead of contactor. Thermal switches built into the stator windings are connected to the contactor and stop the high at high temperature
- Upper bearing: Single-row deep groove ball bearing; Lower bearing: Double angular contact ball bearing
- Double mechanical seal in oil bath. Primary seal: silicon carbide on silicon carbide. Secondary seal: silicon carbide on carbon
Discharge connections
2 ½", 3" (standard), 4" hose connections
2 ½", 3", 4" G/B.S.P. threaded connections
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J61356231111111 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 39.0 Kg |
| Dimensions | 699mm (h) x 373mm (d) |
| Motor Size (kW/W) | P2 = 2.5kW |
| Full Load Current (FLC) | 5.1A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2920rpm |
| Cable Length | 20 metres |

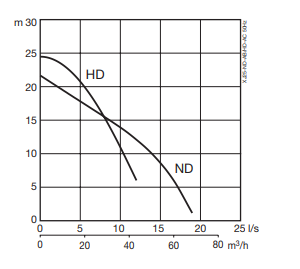

| Max Flow | 70m3/hr |
| Max Head | 21m |
| Max Temperature | Max temperature of pumped medium at max power input and continuous duty 40 ºC |
| Material | Aluminium |
| Impeller Material | White Cast Iron |
