ABS XJC 50 Medium Head Submersible Drainage Center-line Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

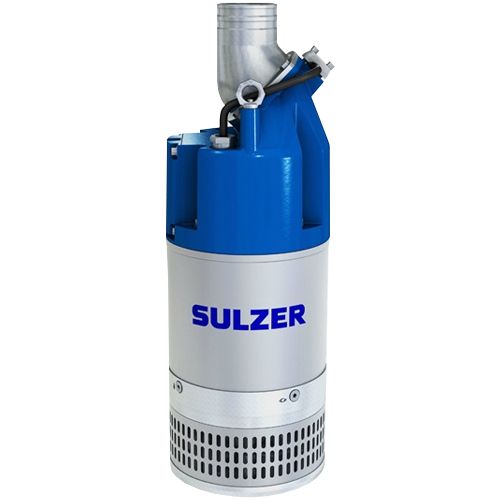

ABS XJC 50 Medium Head Submersible Drainage Center-line Pump 415v - J71356231111111
The slim design of the XJC 50 submersible drainage center-line pump makes it perfect for applications with limited installation space. The pump is ideal for pumping water and dirty water mixed with light abrasives.
Features:
- Plug- and-pump installation without having to worry about overheating
- Reliable, trouble-free operation also at low water levels
- Modular design increases serviceability and makes it easy to convert the pump for different hydraulic requirements
- Maximum submergence: 20 metres
- Max temperature of pumped medium at max power input and continuous duty 40 ºC
- Strainer hole: 7.5 x 22mm
- Max number of starts - 30 per hour
- Direct on line start with built in contactor. Pumps to be used with VFD or 1000 V must have terminal block instead of contactor. Thermal switches (140 °C, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature
- Shaft seal - Double mechanical seal in oil bath. Primary seal: Silicon carbide on silicon carbide. Secondary seal: Silicon carbide on carbon
- Bearings - Upper bearing: Single-row deep groove ball bearing. Lower bearing: Double angular contact ball bearing
Discharge connections:
- 3" (standard HD), 4" (standard ND), 6" (standard LD) hose connections
- 3", 4", 6" G/B.S.P. threaded connections
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J71356381111111 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 59.0 Kg |

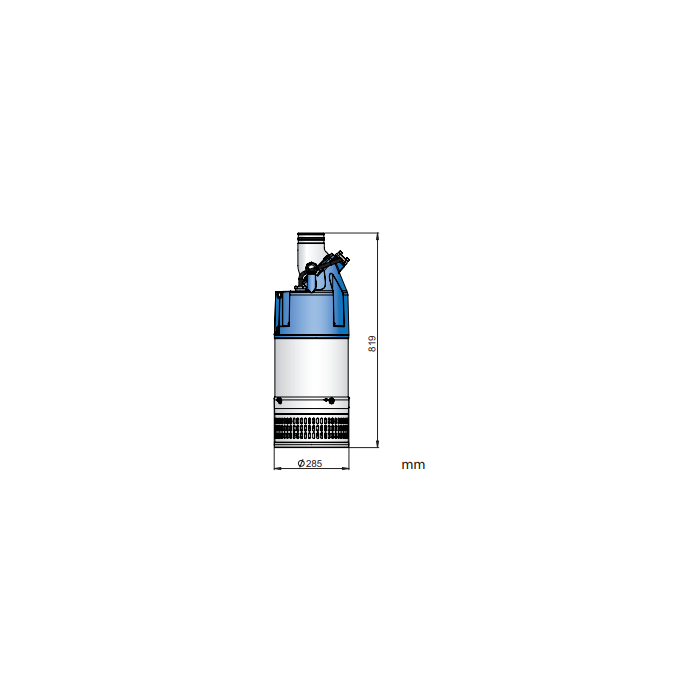

| Dimensions | 819mm (h) x 285mm (d) |
| Motor Size (kW/W) | P2 = 5.6kW |
| Full Load Current (FLC) | 11.3A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2930rpm |
| Cable Length | 20 metres |

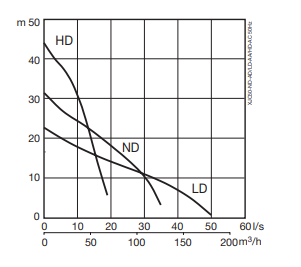

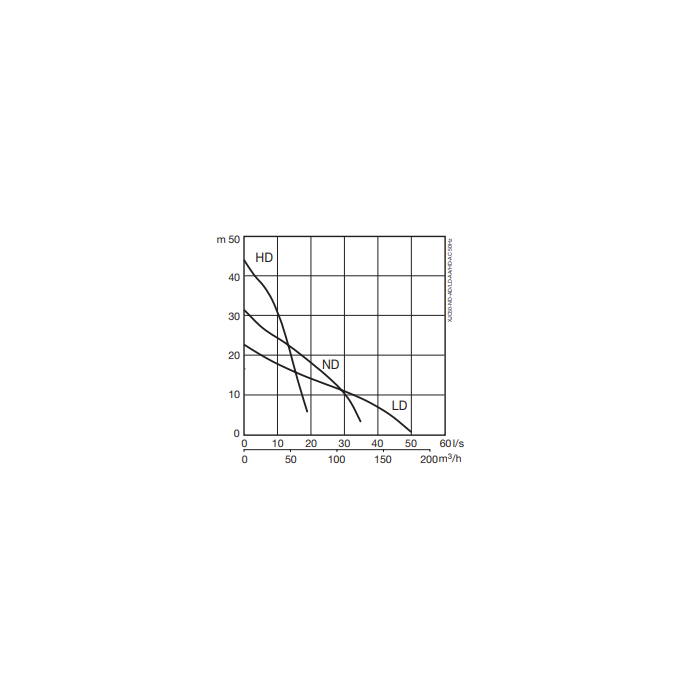

| Max Flow | 130m3/hr |
| Max Head | 31m |
| Max Temperature | Max temperature of pumped medium at max power input and continuous duty 40 ºC |
| Material | Aluminium |
| Impeller Material | White Cast Iron |
