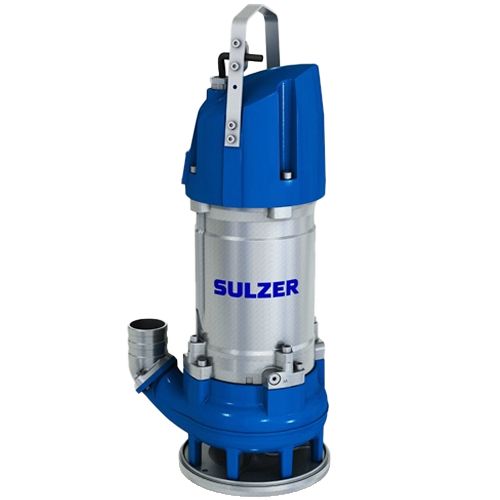

ABS XJS 110 195 Submersible Sludge Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
ABS XJS 110 195 Submersible Sludge Pump 415v - J85J56231111111
The XJS 110 submersible sludge pump is ideal for pumping sludge and water mixed with solids. Direct on line start with built in contactor. Pumps to be used with VFD or 1000v must have terminal block instead of contactor. Thermal switches (140°C, ±5) built into the stator windings are connected to the contactor and stops the pump at high temperature.
Features:
- Plug-and-pump installation without having to worry about overheating
- Clog-free pumping with pumps designed for pumping sludge and water mixed with solids
- Non-overloading performance with a larger impeller diameter which requires half motor or more submersed for continuous duty (pump can operate lying down)
- Maximum submergence - 20 metres
- Max number of starts - 30 per hour
- Max temperature of pumped medium at max power input and continuous duty 40 ºC
- Max medium density 1100 kg/m3
Shaft Seal:
Double mechanical seal in oil bath
Primary seal: Silicon carbide on silicon carbide
Secondary seal: Silicon carbide on carbon
Bearings:
Upper bearing: Single-row deep groove ball bearing
Lower bearing: Double angular contact ball bearing
Discharge connections:
2 ½", 3" (standard), 4" hose connections
2 ½", 3", 4" G/B.S.P. threaded connections
**PLEASE NOTE THAT A DISCHARGE CONNECTION IS NOT PROVIDED WITH THIS PUMP AND MUST BE PURCHASED SEPARATELY.**
| SKU | J85J56381111111 |
|---|---|
| Manufacturer | ABS |
| Manufacturers Warranty | 1 Year |
| Weight | 80.0 Kg |
| Dimensions | 849mm (h) x 438mm (d) |
| Motor Size (kW/W) | P2 = 11.8kW |
| Full Load Current (FLC) | 21.5A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2920rpm |
| Cable Length | 20 metres |
| Max Flow | 120m3/hr |
| Max Head | 36m |
| Max Temperature | Protection class IP 68. Max temperature of pumped medium at max power input and continuous duty 40 ºC |
| Material | Aluminium |
| Impeller Material | Nodular Cast Iron |
