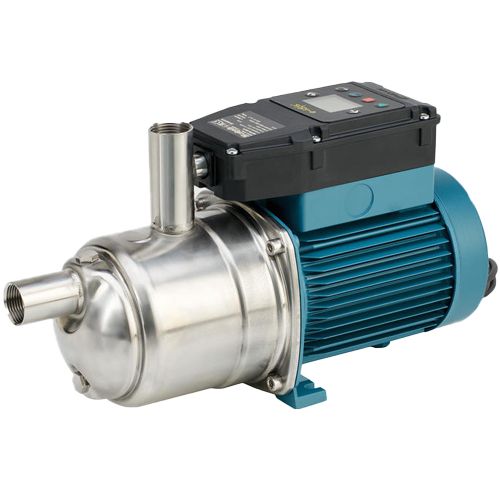

Calpeda E-MXPM 203-PCD Automatic Pressure Booster 240v - E-MXPM 203-PCD
Construction
Pressurized system with integrated pressure control.
Easy to install and Compact plug and play booster set.
Brand new asynchronous single-phase motor.
Equipped with pressure transducer, non-return valve, controlled starting current and temperature.
Equipped with a programmable software and, thanks to the analogic pressure sensor, the product allows to set the re-start pressure.
An ideal solution which allows to reduce or remove the need of a expansion tank.
Features
- high efficiency asynchronous single-phase motor
- capacitor not stressed in voltage
- uniform and lower motor temperature
- motor power control
- programmable re-start pressure
- no hydraulic losses due to the measuring devices
- voltage and current control
- monitoring of maximum starting current
- elimination of water hammer
Protections
- dry-run protection
- air detection in the pump and in the filling cycle
- overload control and overheating motor control
- pump blockage
- overcurrent protection
- power supply control
- system leakage control
- high flow rate and piping failure detection
| SKU | E-MXPM 203-PCD |
|---|---|
| Manufacturer | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 10.0 Kg |
| Voltage | 240V 1Ph 50Hz |
| Cable Length | 1.5m |
| Max Temperature | 35°C |
| Material | Stainless Steel |
| Seal Type | Carbon Ceramic NBR |
| Impeller Material | PPO-GF20 Noryl |
