Calpeda Easymat 2MXSU204/A-EMT-24 Variable Speed Twin Pump Booster Set 240V

SKU
2MXSU204/A-EMT-24
MRRP £4,862.00 + VAT Our price £3,161.00 (+ VAT) Incl. VAT: £3,793.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda Easymat variable speed sets are designed for domestic and small commercial applications.  The EASYMAT ( Variable Speed Control) is the first in a new generation of variable speed controllers developed by Calpeda. The system is installed independent of the pump and motor on the delivery pipe-work allowing for easy retro-fitting, and independent cooling of the motor fan.


The Easymat controller is only suitable for use with 240V single phase supply, and the following models are available for operation on pumps (max.2.2kW or 9.2A).

  • MXP
  • MXH
  • MXSU
  • MXV-B

The units are controlled via a transducer and features a practical and easy to use LCD display featuring a wide range of display and operating functions and signals.

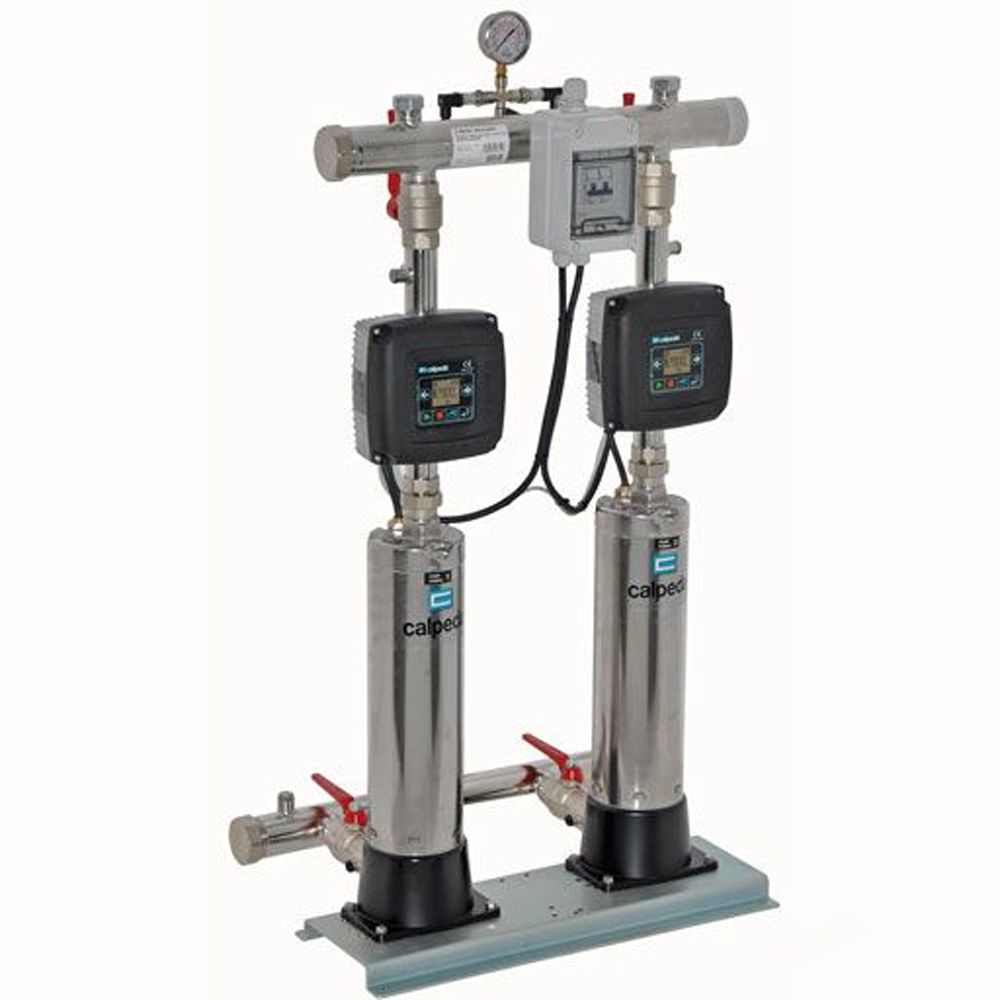

The Easymat controller can control one or two pump booster sets, as in the ranges 1MX and 2MX.  This unit comprises two MXSU stainless steel, multi-stage booster pumps with 2" screwed inlet and outlet connections.

More Information
SKU 2MXSU204/A-EMT-24
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 78.0 Kg

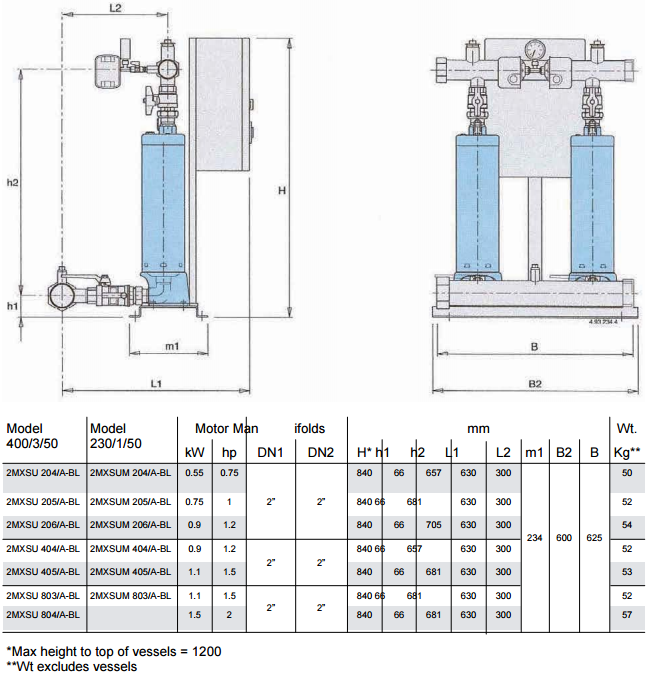

Dimensions 1417mm High x 417mm Deep x 625mm Wide
Motor Size (kW/W) 2 x 0.55 kW
Voltage 240V 1Ph 50Hz

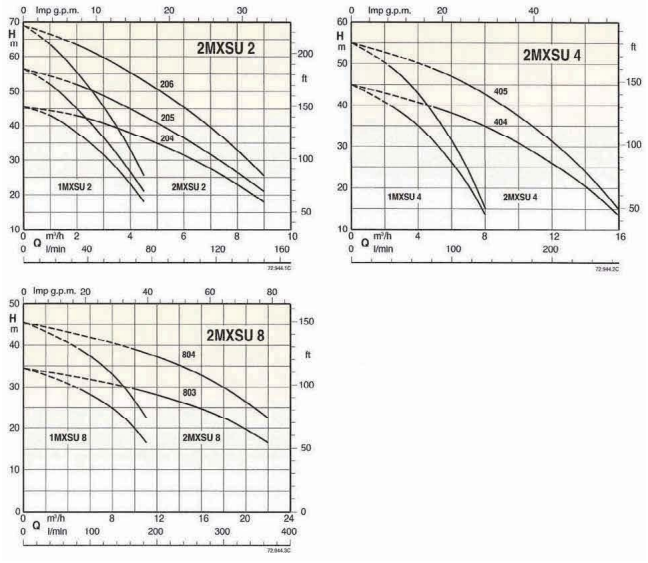

Max Flow 9 m3/hr
Max Head 45m
Material Stainless Steel
