Calpeda GEO230-GXVM25-6 Submersible Pump Lifting Station (Automatic) 240V

Name: Calpeda GEO230-GXVM25-6 Submersible Pump Lifting Station (Automatic) 240V
Brand: Calpeda
SKU: GEO230-GXVM25-6
Price: 994 GBP
Availability: InStock

SKU

GEO230-GXVM25-6

MRRP £1,419.00 + VAT Our price £994.00 (+ VAT) Incl. VAT: £1192.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda GEO230-GXVM25-6 Submersible Pump Lifting Station (Automatic) 240V - GEO230-GXVM25-6

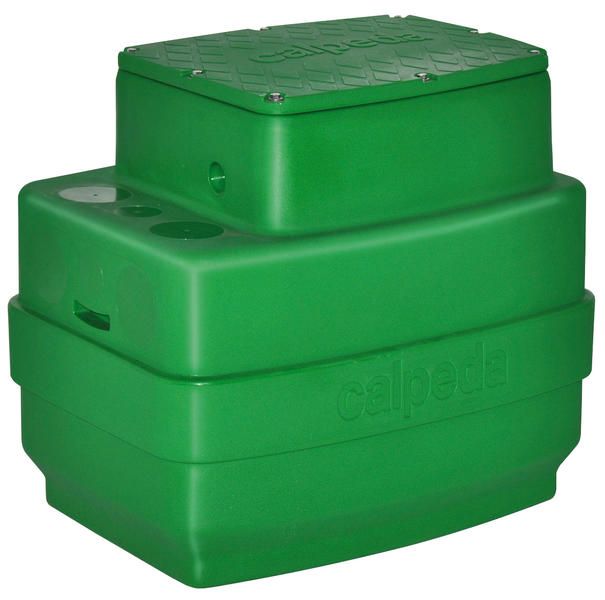

The GEO230 single tank with 230 litre nominal capacity comes with the GXVM25-6, 25-8, 25-10, 40-A and GQSM50-13 submersible pump depending on application. Other pump models can be fitted, please ask Sales for details.

The GEO230 range Automatic collecting and lifting stations:

For clean water GXR pump series
For waste water GXV pump series

Features:

1 x tank capacity 230 lt
1 x single-phase pump with 5 m cable and float switch
1 x discharge pipe kit Ø 40 mm in PVC

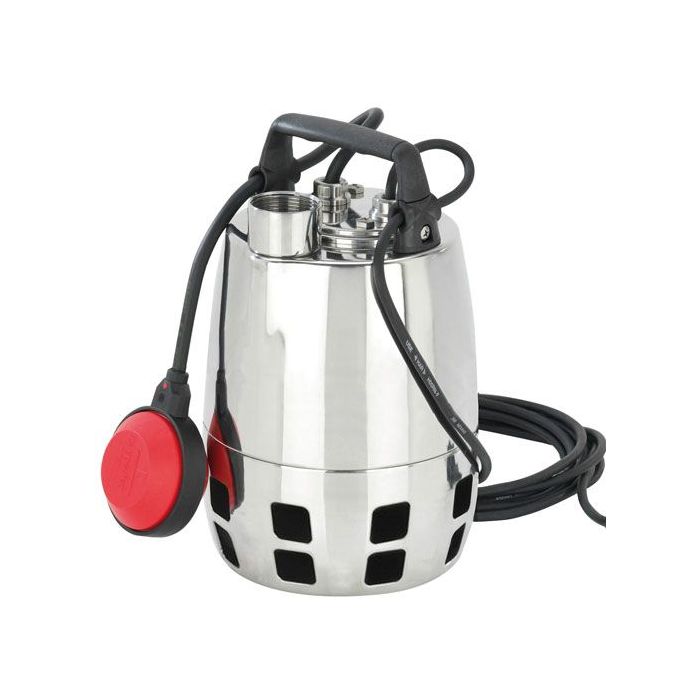

Pump Specification:

Stainless Steel construction
external float switch (cable)

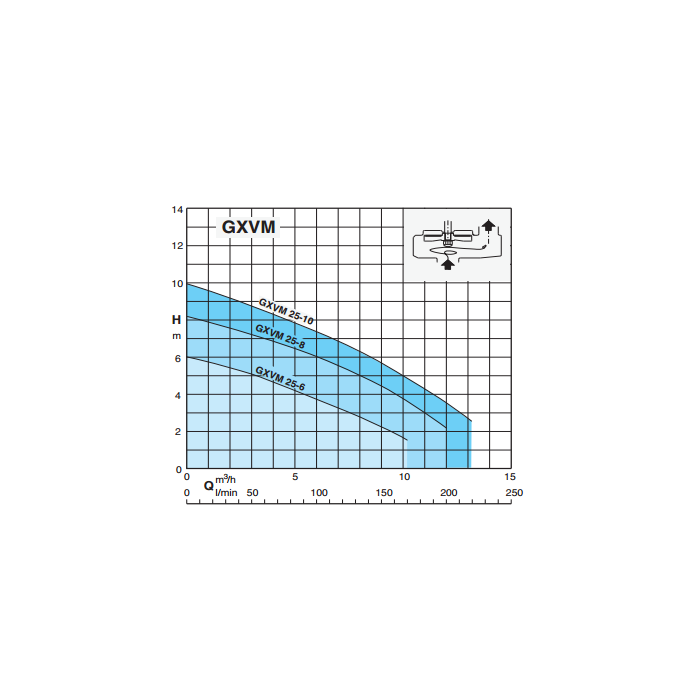

10.2m3/hr max. flow
6m max. head

More Information
SKU	GEO230-GXVM25-6
Weight	8.0 Kg

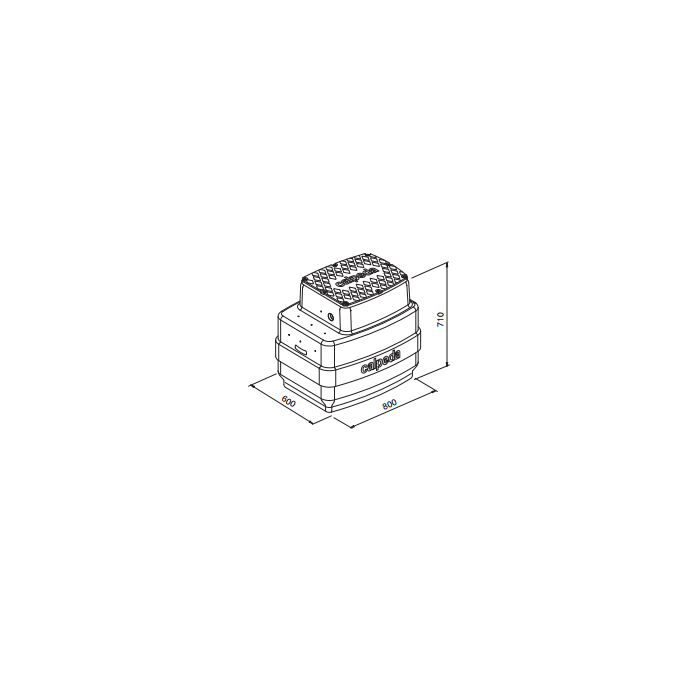

Dimensions	710mm High x 800mm Wide x 600mm Deep
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Material	Plastic
Connection Type	1 1/4 Inch BSP Female
Voltage	240V 1Ph 50Hz
Max Flow	10.2m3/hr
Max Head	6m
Full Load Current (FLC)	2.5A
Cable Length	5 Metres
