Calpeda GXR 13-SG Submersible Dirty Water Pump without Floatswitch 415V [Bundle Kit]
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

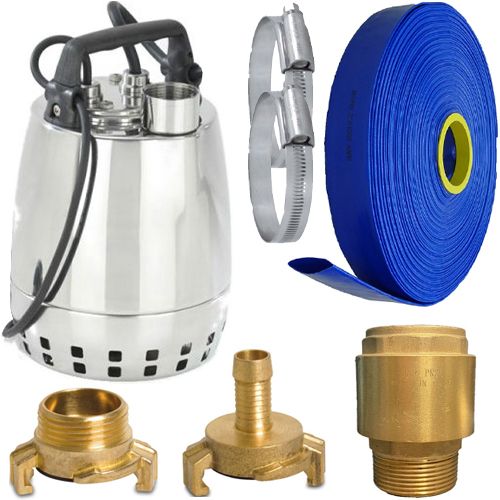

Bundle Kit - Everything you need to get going, with a convenient carry crate to store it.
- Calpeda GXRM 13-SG
- x2 Stainless Steel Suction Hose Clips - 1 1/4"
- Profec Brass Quick Coupler with Male Thread - 1 1/4"
- Profec Brass Quick Coupler with Hose Tail 1 1/4"
- Brass Male-to-Female Non-Return Valve 1 1/4"
- 10m Blue Layflat Hose - 1 1/4"
Calpeda GXR 13-SG Submersible Stainless Steel dirty water drainage pump (without floatswitch), with 5m cable and 0.45kW 415V 3Ph 50Hz motor.
Calpeda GXR and GXV Submersible dirty water Pumps can be used for the following applications:
GXR:
- For clean water containing solids up to 10mm diameter.
- For draining rooms or or emptying tanks.
- Extraction of water from ponds, streams or pits and for rainwater collection.
- For irrigation purposes.
GXV:
- For clean or slightly dirty water, containing solids up to 25 mm grain size.
- Particularly suitable for liquidor with filamentous particles.
For outdoor use a power supply cable of not less than 10m should be used.
Construction Details:
- Single-impeller submersible pumps in chrome-nickel stainless steel, with vertical delivery port.
- GXR: with open impeller.
- GXV(25): with free-flow (vortex) impeller.
- Motor cooled by the pumped water passing between the motor jacket and the external jacket.
- Handle in polypropylene.
- Double shaft seal with oil chamber.
- Certain models have a float switch for automatic start/stop.
- Head up to 12.7m and flow rates up to 220 litres/min.
- 1 1/4" BSP female discharge port.
| SKU | GXR13-SG-KIT |
|---|---|
| Weight | 8.0 Kg |

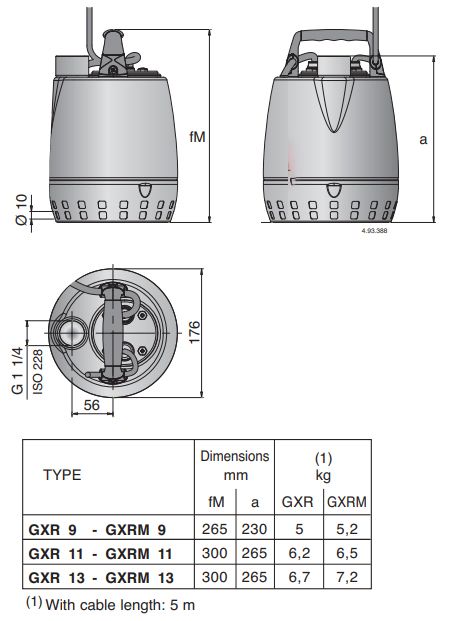

| Dimensions | 300mm High x 176mm Diameter |
| Manufacturer | Calpeda |
| Manufacturers Warranty | 1 Year |
| Material | Stainless Steel |
| Connection Type | 1 1/4 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 13.2m3/hr |
| Max Head | 12.7m |
| Full Load Current (FLC) | 1.6A |
| Cable Length | 5 Metres |
