Calpeda Meta Small Variable Speed Pressure Boosting System 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

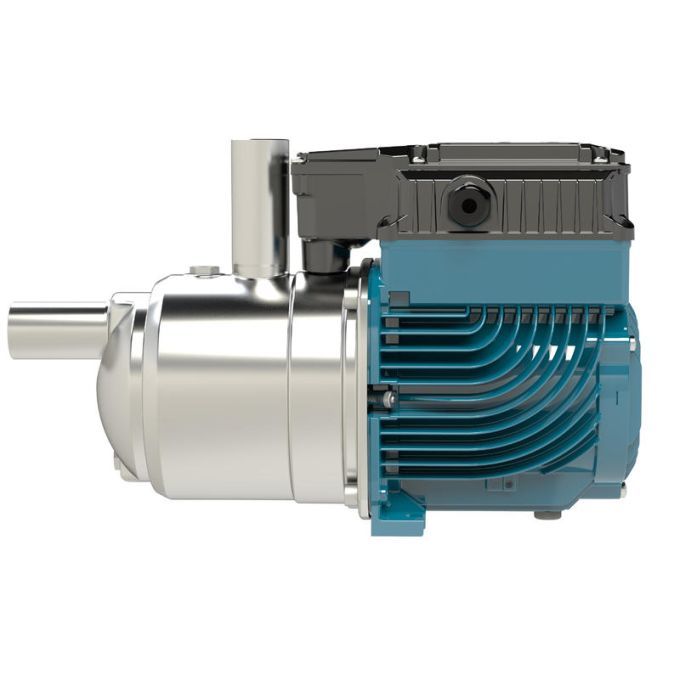

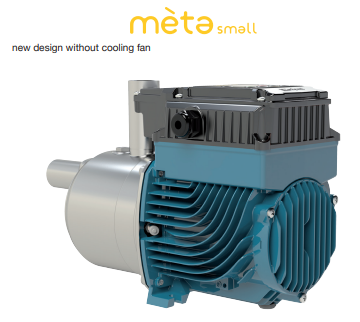

Calpeda Meta S
Self-priming booster set with built in frequency converter.
MÈTA is a plug and play solution, the pump is equipped with an
integrated pressure transducer, an integrated check valve and a
built-in pressure vessel.
The Vsd controls the start and stop of the pump and allows to
keep a constant pressure.
Applications
For water supply systems.
For domestic use, for garden use and irrigation.
Features
• integrated frequency converter
• built-in pressure vessel
• high efficiency asynchronous motor
• motor power control
• programmable re-start pressure
• no hydraulic losses due to the measuring devices
• voltage and current control
• monitoring of maximum starting current
Protections
• dry-run protection
• detects the presence of air in the pump casing
• overload control and overheating motor control
• pump blockage
• power supply control
• starts per hour control
• detects small leakages in the system
| SKU | T663A00200S0 |
|---|---|
| Manufacturer | Calpeda |
| Manufacturers Warranty | 2 Years |
| Weight | 10.0 Kg |

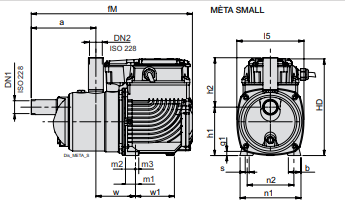

| Dimensions | 387mm x 240mm x 160mm |
| Connection Type | 1 Inch BSP Female |
| Motor Size (kW/W) | 0.65 kW |
| Full Load Current (FLC) | 2.8 A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 5 m3/hr |
| Max Head | 55m |
| Max Temperature | 35 degC |
| Seal Type | Carbon Ceramic NBR |
