Calpeda NM 12/D/A End Suction Threaded Pump 415V

Name: Calpeda NM 12/D/A End Suction Threaded Pump 415V
Brand: Calpeda
SKU: NM12/D/A
Price: 733 GBP
Availability: InStock

SKU

NM12/D/A

MRRP £1,046.00 + VAT Our price £733.00 (+ VAT) Incl. VAT: £879.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda NM 12/D/A close coupled, centrifugal end suction pump with screwed (threaded) connection and 2.2kW (3.0HP) 415V 3Ph 50Hz motor - NM12/D/A

Calpeda NM and NMD threaded pump range are close-coupled, centrifugal pumps with electric motor and extended shaft directly connected to the pump.

NM: single-impeller
NMD: two back-to-back impellers (with axial thrust balancing).

The NM and NMD threaded pump range are suitable for the following applications:

Clean liquids without non-aggressive abrasives ( solids content up to 0.2%)
Mains water supply
Heating, air-conditioning, cooling and circulation plants
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NM12/D/A
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	30.5 Kg

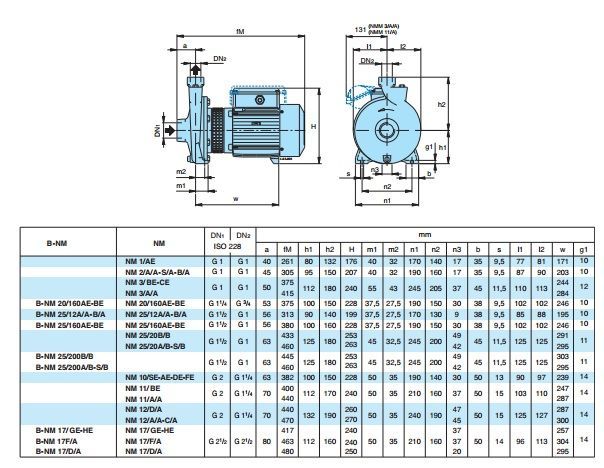

Dimensions	400mm (d) x 240mm (w) x 322mm (h)
Inlet Dimension	2" BSPF
Discharge Dimension	1 1/4" BSPF
Motor Size (kW/W)	2.2 kW
Full Load Current (FLC)	5.3A
Voltage	415V 3Ph 50Hz

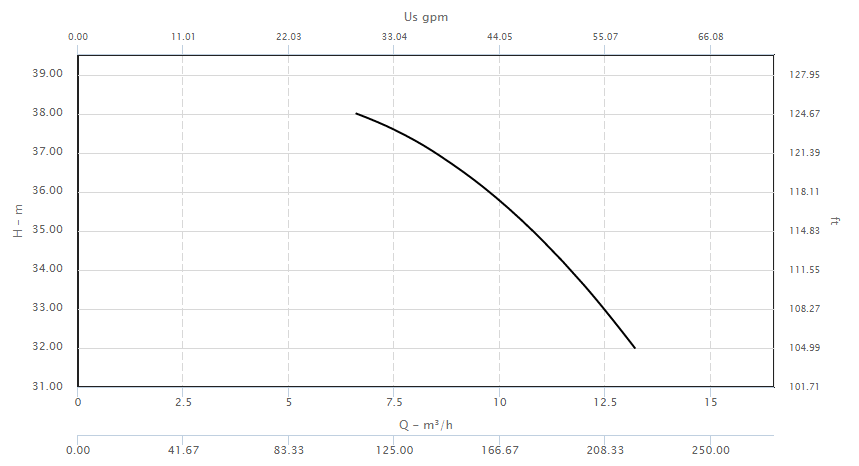

Max Flow	13.2m3/hr
Max Head	38m
Max Temperature	90°C
Material	Cast Iron
