Calpeda NM 32/12FE Flanged End Suction Pump 415V

SKU
NM32/12FE
MRRP £723.00 + VAT Our price £507.00 (+ VAT) Incl. VAT: £608.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

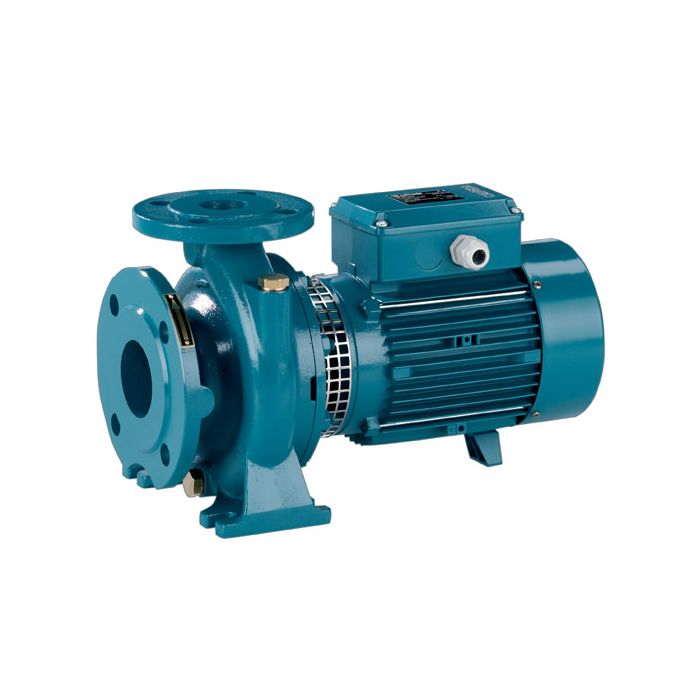

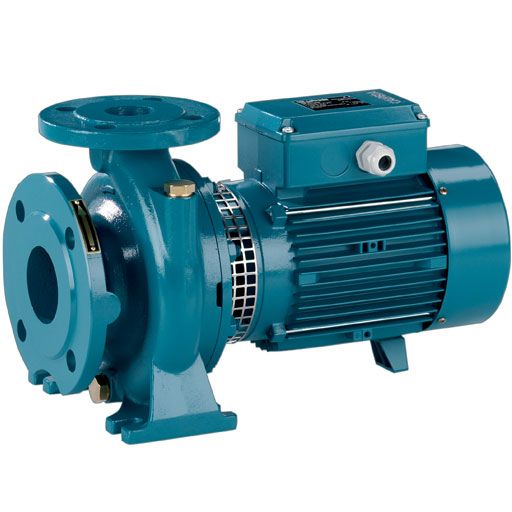

Calpeda NM 32/12FE flanged close coupled end suction centrifugal pump with 0.55kw (0.75HP) 415V 3Ph 50Hz Motor - NM32/12FE

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • Irrigation
More Information
SKU NM32/12FE
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 24.0 Kg
Dimensions 405mm (d) x 252mm (h) x 190mm (w)
Inlet Dimension 50mm Flanged
Discharge Dimension 32mm Flanged
Motor Size (kW/W) 0.55 kW
Full Load Current (FLC) 2.3A
Voltage 415V 3Ph 50Hz

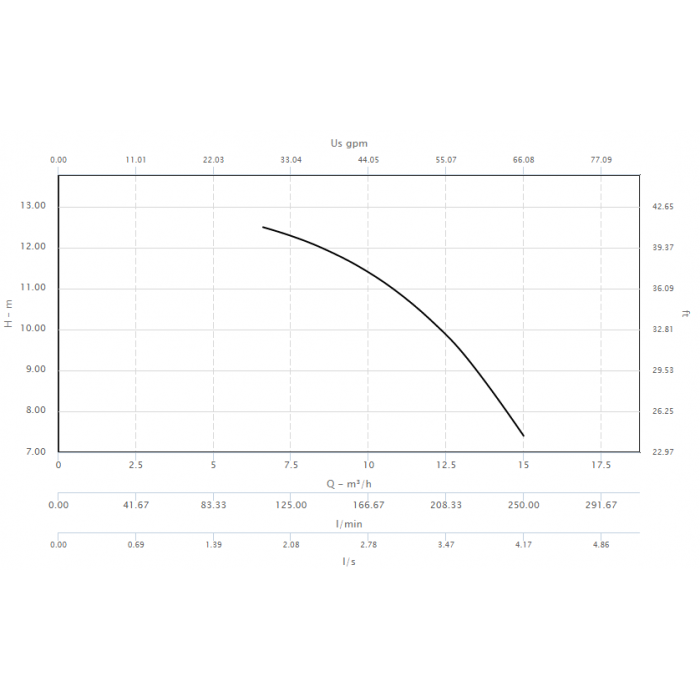

Max Flow 15m3/hr
Max Head 12.5m
Max Temperature 90°C
Material Cast Iron
