Calpeda NM 32/16A/A Flanged End Suction Pump 415V

Name: Calpeda NM 32/16A/A Flanged End Suction Pump 415V
Brand: Calpeda
SKU: NM32/16AA
Price: 733 GBP
Availability: InStock

SKU

NM32/16AA

MRRP £1,046.00 + VAT Our price £733.00 (+ VAT) Incl. VAT: £879.60

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

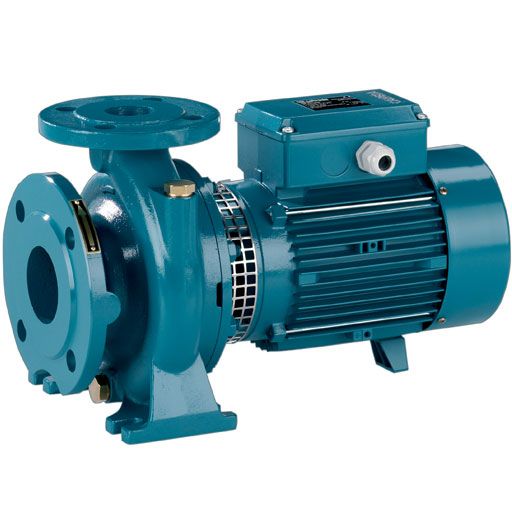

Calpeda NM 32/16AE flanged close coupled end suction centrifugal pump with 2.2kw (3.0HP) 415V 3Ph 50Hz Motor - NM32/16AA

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NM32/16AA
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	37.0 Kg
Dimensions	410mm (d) x 240mm (w) x 292mm (h)
Inlet Dimension	50mm Flanged
Discharge Dimension	32mm Flanged
Motor Size (kW/W)	2.2 kW
Full Load Current (FLC)	5.3A
Voltage	415V 3Ph 50Hz
Max Flow	13.2m3/hr
Max Head	35.5m
Max Temperature	90°C
Material	Cast Iron
