Calpeda NM 32/20C/A Flanged End Suction Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

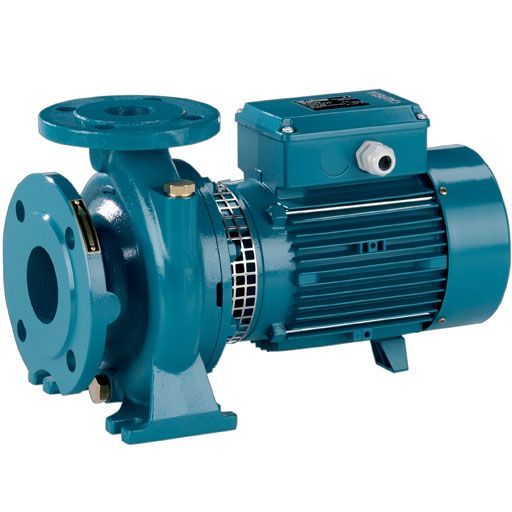

Calpeda NM 32/20CA flanged close coupled end suction centrifugal pump with 3.0kw (4.0HP) 415V 3Ph 50Hz Motor - NM32/20CA
Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.
These pumps are suitable for the following applications:
- Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
- Mains water supply
- Heating, air conditioning, cooling and circulation
- Civil and industrial applications
- Fire fighting applications
- Irrigation
| SKU | NM32/20CA |
|---|---|
| Manufacturer | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 49.0 Kg |
| Dimensions | 475mm (d) x 240mm (w) x 340mm (h) |
| Inlet Dimension | 50mm Flanged |
| Discharge Dimension | 32mm Flanged |
| Motor Size (kW/W) | 3.0 kW |
| Full Load Current (FLC) | 6.6A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 15m3/hr |
| Max Head | 45m |
| Max Temperature | 90°C |
| Material | Cast Iron |
