Calpeda NM 40/16A/C Flanged End Suction Pump 415V

Name: Calpeda NM 40/16A/C Flanged End Suction Pump 415V
Brand: Calpeda
SKU: NM40-16AB
Price: 990 GBP
Availability: InStock

SKU

NM40-16AB

MRRP £1,413.00 + VAT Our price £990.00 (+ VAT) Incl. VAT: £1188.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

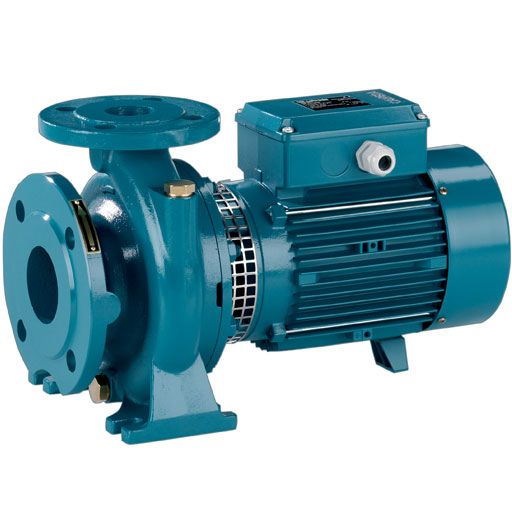

Calpeda NM 40/16A/B Flanged close coupled end suction centrifugal pump with 4.0kw (5.5HP) 415V 3Ph 50Hz Motor - NM40-16AB

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NM40-16AB
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	49.0 Kg
Dimensions	475mm (d) x 292mm (h) x 240mm (w)
Inlet Dimension	65mm Flanged
Discharge Dimension	40mm Flanged
Motor Size (kW/W)	4.0 kW
Full Load Current (FLC)	9.6A
Voltage	415V 3Ph 50Hz
Max Flow	48m3/hr
Max Head	37m
Max Temperature	90°C
Material	Cast Iron
