Calpeda NM 40/25B/C Flanged End Suction Pump 415V

Name: Calpeda NM 40/25B/C Flanged End Suction Pump 415V
Brand: Calpeda
SKU: NM40-25BC
Price: 2266 GBP
Availability: InStock

SKU

NM40-25BC

MRRP £3,237.00 + VAT Our price £2,266.00 (+ VAT) Incl. VAT: £2719.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

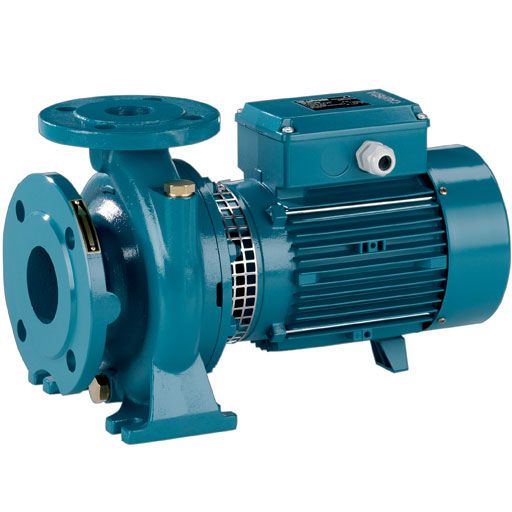

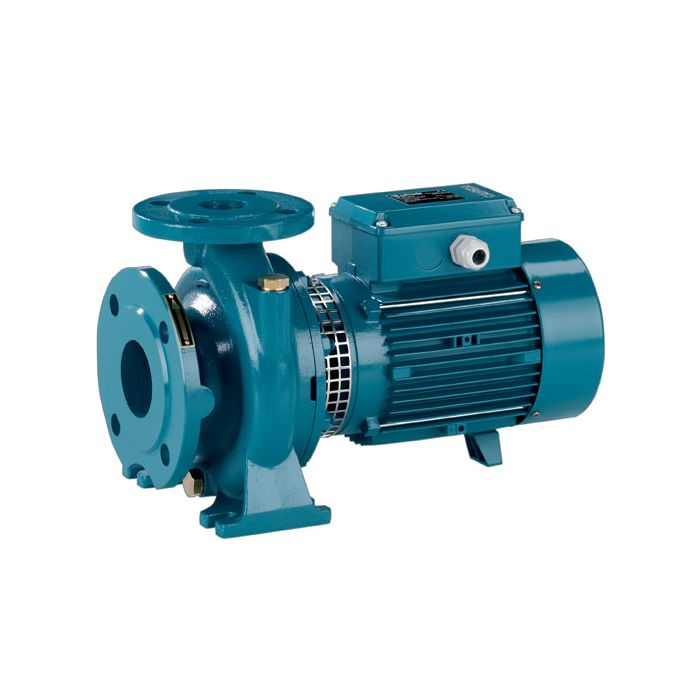

Calpeda NM 40/25B/B Flanged close coupled end suction centrifugal pump with 11.0kW (15.0HP) 415V 3Ph 50Hz Motor - NM40-25BC

Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
Irrigation

More Information
SKU	NM40-25BC
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	116.0 Kg

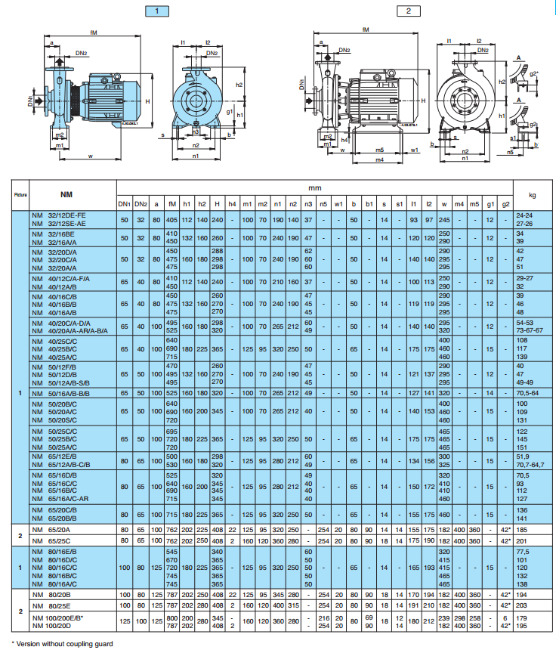

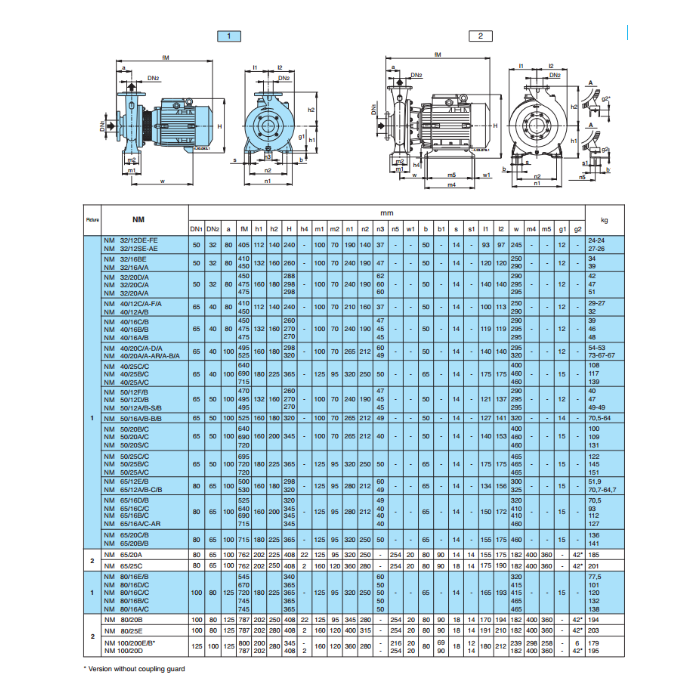

Dimensions	640mm (d) x 405mm (h) x 320 (w)
Inlet Dimension	65mm Flanged
Discharge Dimension	40mm Flanged
Motor Size (kW/W)	11 kW
Full Load Current (FLC)	21.5A
Voltage	415V 3Ph 50Hz

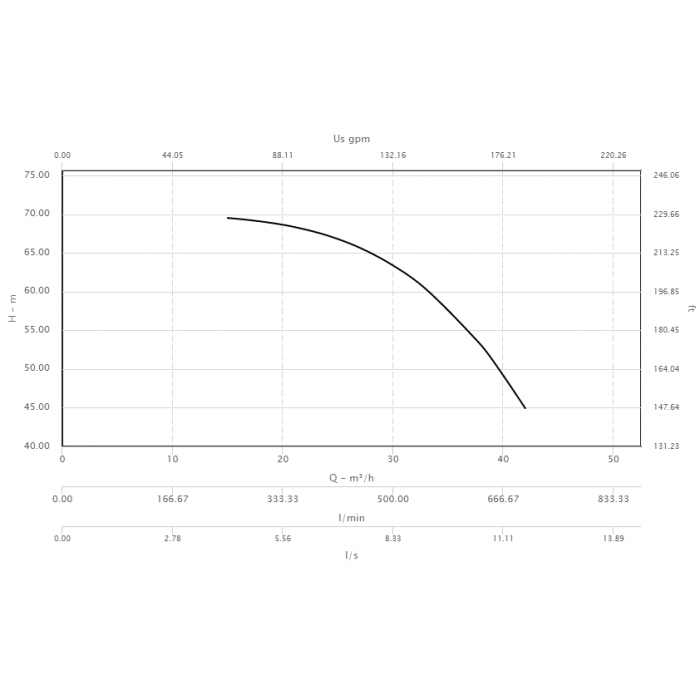

Max Flow	42m3/hr
Max Head	69.5m
Max Temperature	90°C
Material	Cast Iron
