Calpeda NM 65/16A/B Flanged End Suction Pump 415V
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

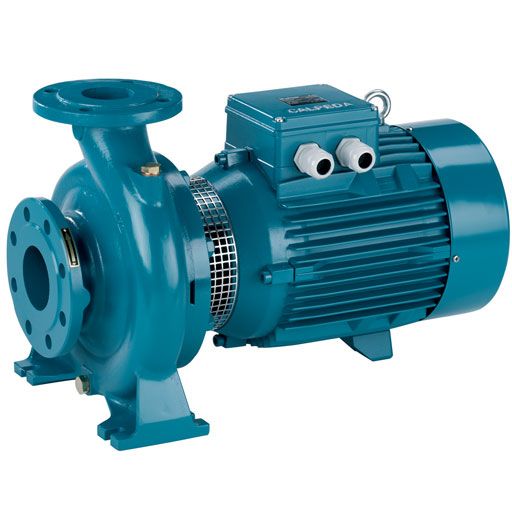

Calpeda NM 65/16A/A Flanged close coupled end suction centrifugal pump with 15.0kW (20.0HP) 415V 3Ph 50Hz Motor - NM65-16AB
Calpeda NM flanged end suction close-coupled centrifugal pumps have an electric motor with shaft directly connected to the pump.
These pumps are suitable for the following applications:
- Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
- Mains water supply
- Heating, air conditioning, cooling and circulation
- Civil and industrial applications
- Fire fighting applications
- Irrigation
| SKU | NM65-16AB |
|---|---|
| Manufacturer | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 121.0 Kg |
| Dimensions | 690mm (d) x 360mm (h) x 280mm (w) |
| Inlet Dimension | 80mm Flanged |
| Discharge Dimension | 65mm Flanged |
| Motor Size (kW/W) | 15 kW |
| Full Load Current (FLC) | 27.3A |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 120m3/hr |
| Max Head | 38m |
| Max Temperature | 90°C |
| Material | Cast Iron |
