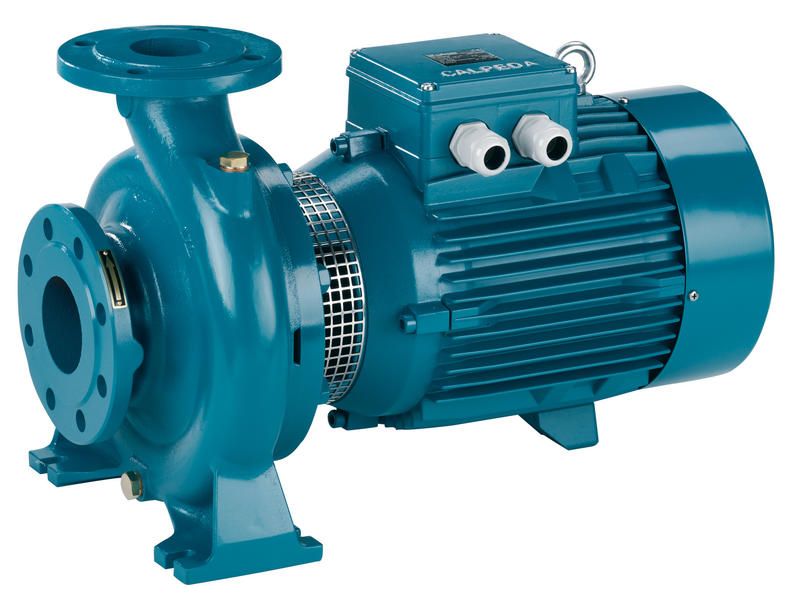

Calpeda NM4 40/16A/B 4 Pole Flanged End Suction Pump 415V

Name: Calpeda NM4 40/16A/B 4 Pole Flanged End Suction Pump 415V
Brand: Calpeda
SKU: NM4-40-16AB
Price: 830 GBP
Availability: InStock

SKU

NM4-40-16AB

MRRP £1,185.00 + VAT Our price £830.00 (+ VAT) Incl. VAT: £996.00

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

Calpeda NM4 40/16A/B 4 Pole Flanged End Suction Pump 415V - NM4-40-16AB

Calpeda NM4 4 Pole flanged end suction close-coupled centrifugal pumps have an electric motor with extended shaft directly connected to the pump. Pump casing with axial suction and radial delivery on top.

These pumps are suitable for the following applications:

Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
Mains water supply
Heating, air conditioning, cooling and circulation
Civil and industrial applications
Fire fighting applications
When low noise operating is required
Irrigation

PUMP SUPPLIED WITH FREE UK MAINLAND DELIVERY.

More Information
SKU	NM4-40-16AB
Manufacturer	Calpeda
Manufacturers Warranty	1 Year
Weight	41.0 Kg

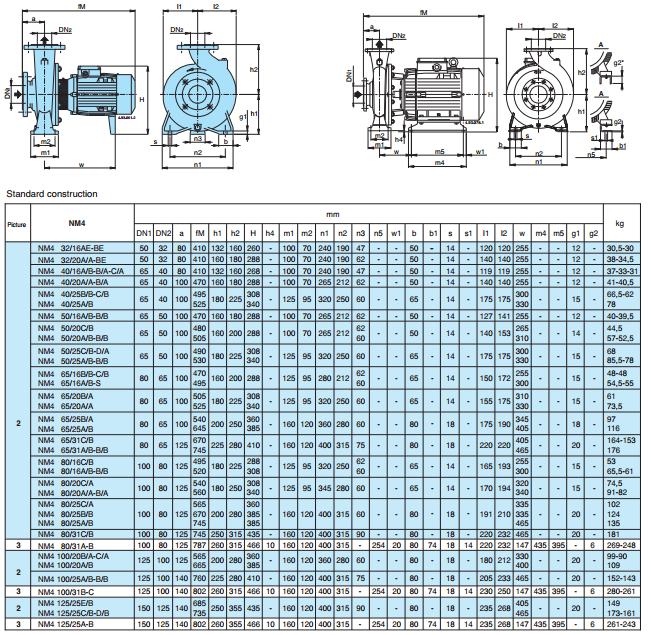

Dimensions	410mm (d) x 192mm (h) x 240mm (w)
Inlet Dimension	65mm Flanged
Discharge Dimension	40mm Flanged
Motor Size (kW/W)	0.75 kW
Voltage	415V 3Ph 50Hz
Max Flow	26.5m3/hr
Max Head	9.6m
Max Temperature	90°C
Material	Cast Iron
