Calpeda NM4 65/16A/A 4 Pole Flanged End Suction Pump 415V

SKU
NM4-65-16AA
MRRP £1,510.00 + VAT Our price £982.00 (+ VAT) Incl. VAT: £1,178.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within
Hours
Mins
Secs
for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Calpeda NM4 65/16A/A 4 Pole Flanged End Suction Pump 415V - NM4-65-16AA

Calpeda NM4 4 Pole flanged end suction close-coupled centrifugal pumps have an electric motor with extended shaft directly connected to the pump. Pump casing with axial suction and radial delivery on top.

These pumps are suitable for the following applications:

  • Clean liquids without abrasives, which are non-aggressive for the pump materials (solids content up to 0.2%)
  • Mains water supply
  • Heating, air conditioning, cooling and circulation
  • Civil and industrial applications
  • Fire fighting applications
  • When low noise operating is required
  • Irrigation

PUMP SUPPLIED WITH FREE UK MAINLAND DELIVERY.

More Information
SKU NM4-65-16AA
Manufacturer Calpeda
Manufacturers Warranty 1 Year
Weight 68.0 Kg

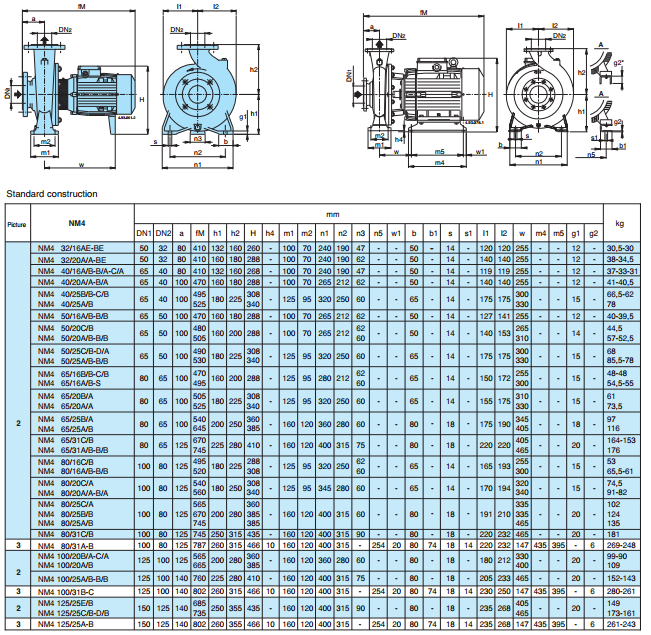

Dimensions 645mm (d) x 450mm (h) x 360mm (w)
Inlet Dimension 80mm Flanged
Discharge Dimension 65mm Flanged
Motor Size (kW/W) 1.5 kW
Full Load Current (FLC) 3.5A
Voltage 415V 3Ph 50Hz

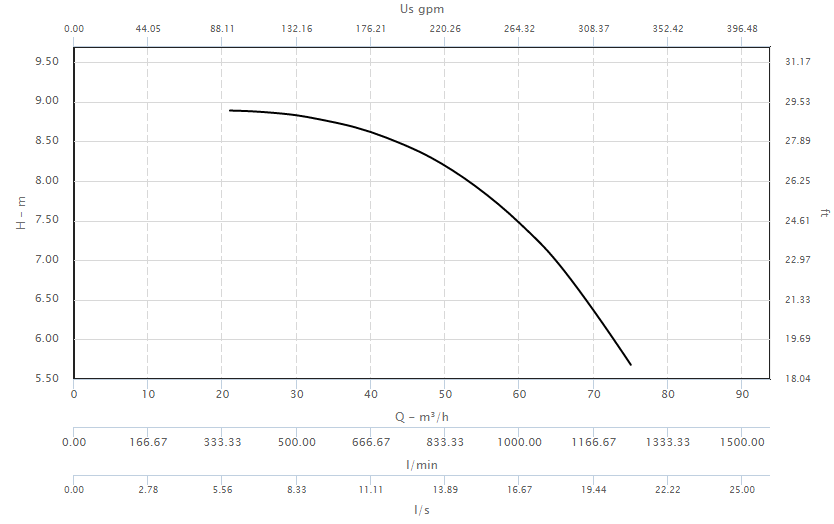

Max Flow 75m3/hr
Max Head 9m
Max Temperature 90°C
Material Cast Iron
