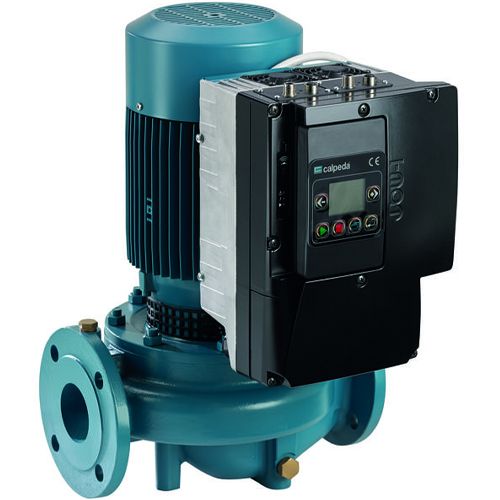

Calpeda NR EI 40/125C Inline Centrifugal I-MAT Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Calpeda NR EI 40/125C Inline Centrifugal I-MAT Pump 415v - I70MA0200000
Construction
Close-coupled, single-impeller, centrifugal pumps; electric motor with extended shaft directly connected to the pump.
NR, NR4: Single head pump.
NRD: Twin head pump with bulit-in automatic switching valve. The two head can operate singularly or in parallel.
Pump casing with suction and delivery connections with the same diameter and on the same axis (in-line).
Connections: Flanges PN 10, EN 1092-2.
Counterflanges(on request):
NR,NR4 32,40,50,65 : Screwed flanges PN 16, EN 1092-1.
NR4 100, NR4 125 : Flanges for welding PN 10, EN 1092-1.
Version with frequency converter (on request)
Applications
- For clean liquids, without abrasives, which are non-aggressive for the pump materials (contents of solids up to 0.2%).
- For heating, conditioning, cooling and circulation plants.
- For civil and industrial applications.
- When low noise operation is required (n = 1450 rpm).
| SKU | I70MA0200000 |
|---|---|
| Manufacturer | Calpeda |
| Manufacturers Warranty | 1 Year |
| Weight | 30.0 Kg |
| Inlet Dimension | DN 40 |
| Discharge Dimension | DN 40 |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2900 |
| Max Flow | 21m³/h |
| Max Head | 15.70m |
| Max Pressure | 10 bar |
| Max Temperature | 90°C |
| Material | Cast Iron |
| Impeller Material | Brass |
| Manufactured In | Italy |
