Control Pump Plus Single & Twin Pump Control Panel
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

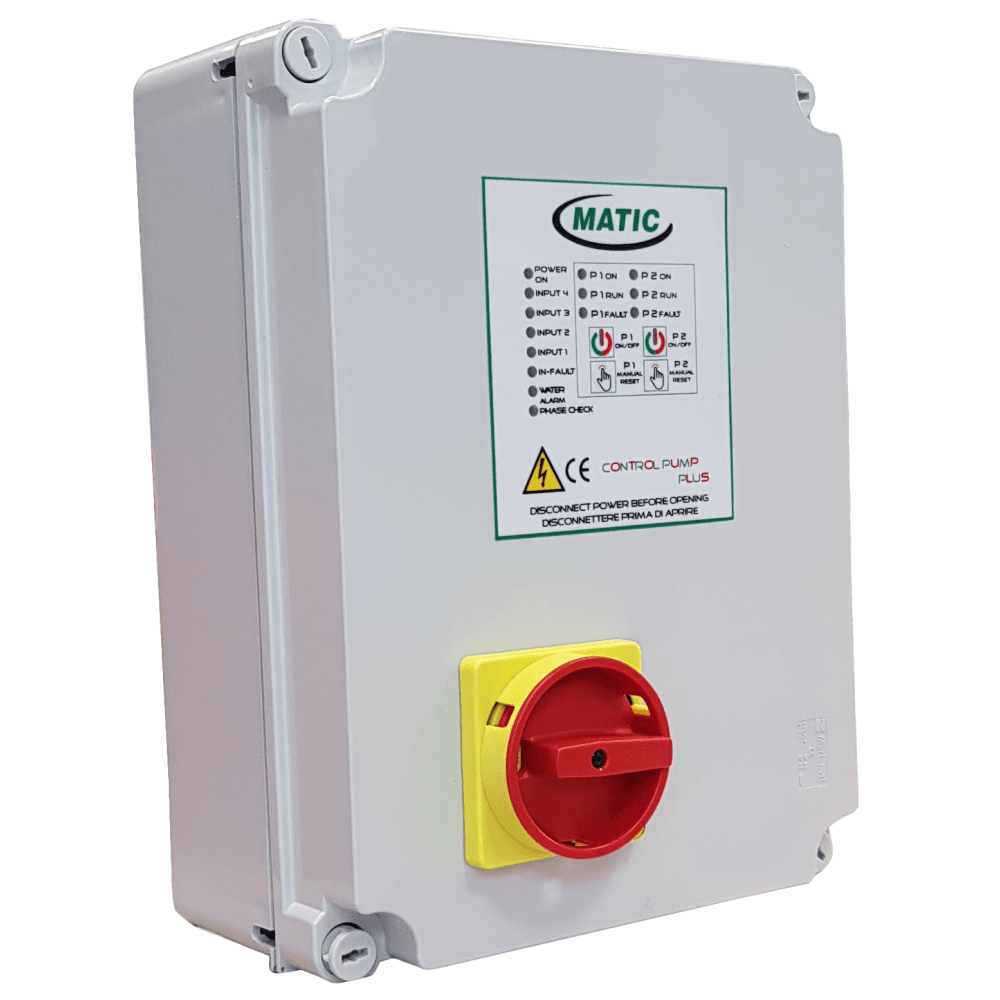

Control Pump Plus Single & Twin Pump Control Panel - 021-400
All in one multi voltage control pump plus panel. 230v input supply to control a single pump or twin pumps. 400v input supply to control a single pump or twin pumps. On twin pump set up there are alternate and assist functions. Run and trip indicators, auto/off/manual button. In built alarm buzzer. For use with sump pumps, surface booster pumps and well pumps.
Easy to follow set up and wiring diagram.
Anti rotor lock function (drainage set up only).
Plastic ABS box IP55 rated.
Features:
- 230v or 400v supply
- single or twin pump
- NO & NC alarm contact
- Operations by floats/probes or pressure switches
Applications:
- pump sewage stations
- booster sets
- wells & boreholes
| SKU | 021-400 |
|---|---|
| Manufacturer | JS |
| Manufacturers Warranty | 1 Year |
| Weight | 3.0 Kg |

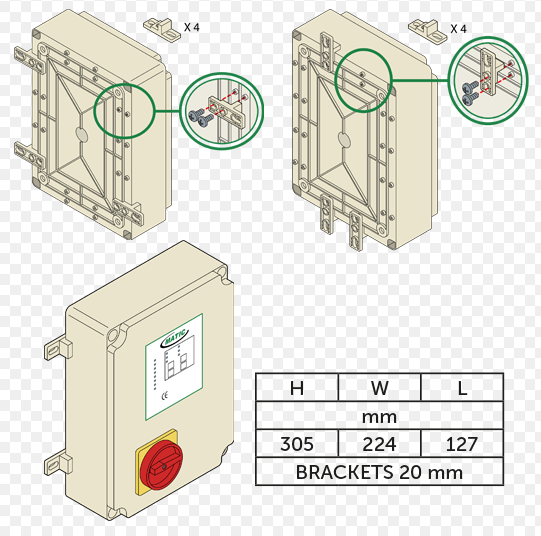

| Dimensions | 305mm (h) x 224mm (w) x 127mm (l) |
| Motor Size (kW/W) | 230v - up to 1.5kW, 400v - up to 5.5kW |
| Full Load Current (FLC) | 0.25A - 15A |
