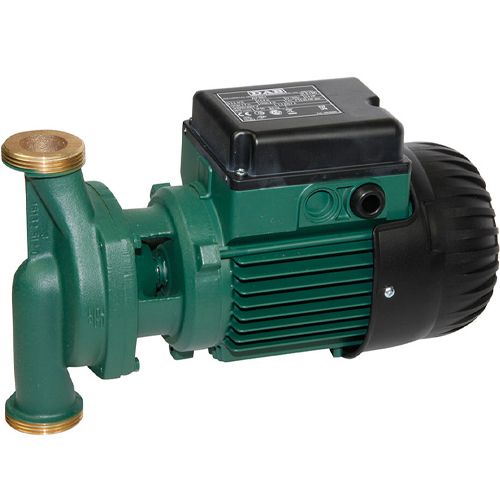

DAB ALM 200 M In-Line Circulator Pump 240v

Name: DAB ALM 200 M In-Line Circulator Pump 240v
Brand: DAB
SKU: 105100004
Price: 556 GBP
Availability: InStock

SKU

105100004

MRRP £794.00 + VAT Our price £556.00 (+ VAT) Incl. VAT: £667.20

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

APPLICATIONS
Hot or cold water circulation pump with in-line ports, suitable for installation directly on the pipework of civil and industrial heating, air conditioning, refrigeration, and sanitary water systems.

CONSTRUCTION FEATURES OF THE PUMP
Cast iron pump body and motor support for ALM 500 and ALP 2000, bronze for ALM 200 and ALP 800. 1” 1/2 M-GAS suction and delivery ports for ALM 200 and ALP 800, and 2” M-GAS for ALM 500 and ALP 2000. Technopolymer impeller. Carbon/ceramic mechanical seal.

CONSTRUCTION FEATURES OF THE MOTOR
External ventilation cooling, closed, asynchronous type, with four poles for the ALM version, and two poles for the ALP version. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability.
Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions.
For the protection of the three-phase motor, we recommend the use of remote overload cut-outs, in compliance with current local regulations. Construction according to CEI 2-3.
Protection class: IP 55
Insulation class: F
Standard voltages: single-phase 220-240V 50Hz.
three-phase 230/400V 50Hz

More Information
SKU	105100004
Manufacturer	DAB
Manufacturers Warranty	2 Years
Weight	8.0 Kg
Dimensions	300mm (w) x 190mm (h) x 136mm (d)
Connection Type	1 1/2" bsp Male
Motor Size (kW/W)	0.059kW
Full Load Current (FLC)	0.7A
Voltage	240V 1Ph 50Hz
RPM	1480rpm
Cable Length	1.5m
Max Flow	3.5m3/hr
Max Head	2m
Max Temperature	120°C
Material	Cast Iron
