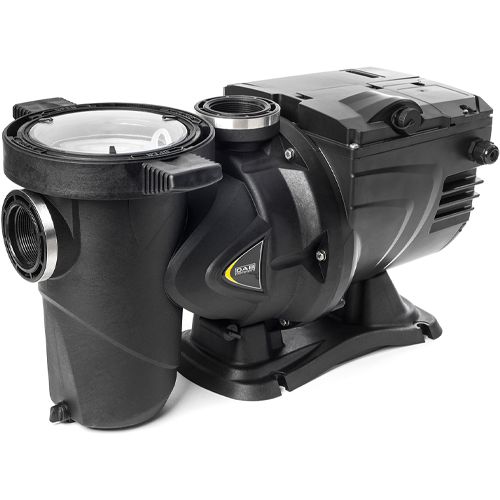

DAB E.Swim 150 SVRS Swimming Pool Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Eswim and Eswim SVRS are electronic pumps with inverters for filtration in swimming pools or fish farms, including salt water, to be used in domestic and residential environments. Silent, programmable and equipped with a large inspectable pre-filter. The 12-pin control board of Eswim and Eswim SVRS makes them compatible with any control panel, analog or digital.
CONSTRUCTION FEATURES OF THE PUMP
High capacity strainer basket, with easy to remove cover with filter simple to pull out and cleaning. The filter is in antioxidant material for quick and easy visual inspection. Equipped with rubber feet to reduce vibrations. Bayonet lid closure.
CONSTRUCTION FEATURES OF THE MOTOR
Synchronous permanent magnet motor, brushless, with encapsulated magnetized rotor, cooled by the pumped liquid (without cooling fan), with a noise level of only 45 dB. The aluminum motor casing is coated with elastomer.
ELECTRONIC FEATURES
The remote control is possible via 0-10 V, 4-20 mA and PWM signal. Thanks to the variable frequency drive, the pumps can operate at constant speed or constant flow (without the use of sensors) to optimize performance and minimize energy consumption. The control panel has 4 buttons with 8 programmable speeds and status and alarm LEDs. There is a menu for weekly and seasonal programming. The SVRS version is equipped with a software function that disables pump suction if an obstruction is detected. "SVRS" is an acronym that means Safety Vacuum Release Systems.
| SKU | 60194427 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 19.0 Kg |
| Dimensions | 316mm (h) x 550mm (w) x 300mm (d) |
| Connection Type | 2 Inch BSP Female |
| Motor Size (kW/W) | 1.1kW |
| Full Load Current (FLC) | 5.6A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 30m³/h |
| Max Head | 16m |
| Max Pressure | 1.6 Bar |
| Max Temperature | 40°C |
| Material | Plastic |
