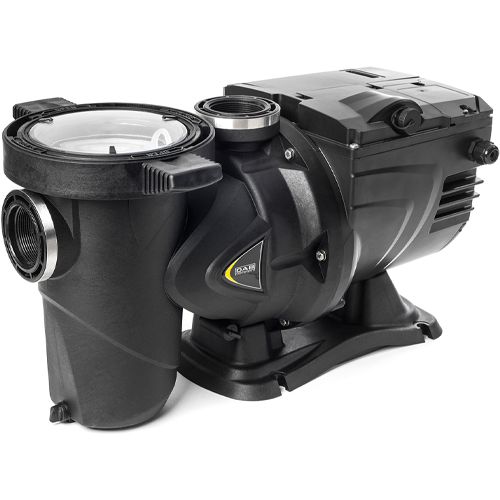

DAB E.Pro 150 Swimming Pool Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
E.SWIM is the most silent and energy-efficient electronic swimming pool pump with built-in high capacity strainer basket. E.SWIM combine advanced engineering hydraulics parts, frequency converter technology, and high efficiency permanent magnet motor (with its innovative water cooled motor) to run whatever the speed of the motor is (high or low) in a super silent way. Extremely quiet and highly reliable, developed for water circulation and filtration in domestic and residential swimming pools.
CONSTRUCTION FEATURES
The impeller and volute are designed to achieve high efficency, improoving hydraulics performances. Transparent antioxidant polycarbonate basket cover ensuring constant visibility over the long period. Fibreglass reinforced technopolymer hydraulics designed to ensure total cover and insulation of the motor shaft from the pumped liquid. Carbon / alumina / NBR / AISI 316 mechanical seal. Butterfly filling and drain plugs that can be removed and refitted without tools. E.SWIM is provided with syncronous brushless electric motor with incapsulated magnetic rotor, driven by frequency converter. Motor water cooled (no motor fan), extremely quiet running. Die cast aluminium motor casing with special coating to avoid oxidation. Support base supplied with rubber feet to reduce vibrations. E.SWIM pump is controlled by an electronic device based on Trench IGBT technology of the latest generation for higher efficiency and robustness. Two dedicated 32-bit processors (one for motor control and one for the user interface), intuitive user interfaces, and external input (a digital input and a analogic input 0-10V or 4-20mA) ensure ease of setting for all users. Its onboard computer and intelligent software can operate at adjustable CONSTANT SPEED or
CONSTANT FLOW (totally sensorless) to optimize
performance and minimize energy use.
Wireless on board ready for communication with DAB connectivity device.
HIGHLIGHTS
- NOISELESS New water cooled motor
- HIGH EFFICENCY Thanks to the new brushless motor, new hydraulics, new electronic motor control
- DESIGN Modern and compact
- RELIABLE Components designed for long life
- RANGE REDUCTION One model covers the performancies of 4 pumps (0,5 HP - 0,75 HP - 1 HP - 1,5 HP)
DISPLAY FEATURES
- 4 different keys preset at specific Speed/Flow (1, 2, 3, 4)
- speed/flow keys are adjustable
- On board scheduling with timers
- ‘Auto’ button enable the automatic operation according to the timer schedule
- ‘Quick Clean’ button enable high speed operation
- Central keys for menu navigation and settings
- Sequential navigation system
- LEDs for indication of: Warning/Alarm, Power on, Pump Running
- LCD display (2.75“ x 1.58“) showing run time, mode and current status
- Antifreeze system protection
| SKU | 60194429 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 19.0 Kg |
| Dimensions | 351mm (h) x 486mm (w) x 242mm (d) |
| Connection Type | 2 Inch BSP Female |
| Motor Size (kW/W) | 1.1kW |
| Full Load Current (FLC) | 5.6A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 30m³/h |
| Max Head | 16m |
| Max Pressure | 1.6 Bar |
| Max Temperature | 40°C |
| Material | Plastic |
