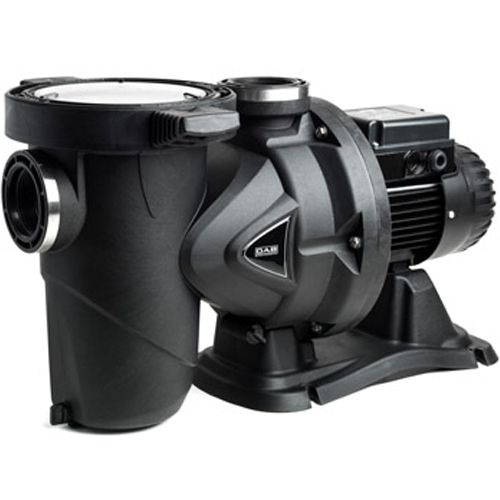

DAB EuroSwim 75 M Swimming Pool Pump 240v

Name: DAB EuroSwim 75 M Swimming Pool Pump 240v
Brand: DAB
SKU: 60118029
Price: 544 GBP
Availability: InStock

SKU

60118029

MRRP £777.00 + VAT Our price £544.00 (+ VAT) Incl. VAT: £652.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

APPLICATIONS
High performance self-priming centrifugal electric pumps with built-in high capacity prefilter. Motor completely isolated from the water. Extremely quiet and highly reliable, developed for water circulation and filtration in domestic and residential swimming pools. Also suitable for specific applications requiring handling of aggressive liquids in the fishing, agricultural, and industrial sectors.

CONSTRUCTION FEATURES OF THE PUMP
Fibreglass reinforced technopolymer pump body. Transparent antioxidant polycarbonate prefilter cover ensuring constant visibility over the long period. Nylon strainer. Fibreglass reinforced technopolymer impeller designed to ensure total cover and insulation of the motor shaft from the pumped liquid. Reinforced technopolymer diffuser. Carbon/alumina/NBR/AISI 316 mechanical seal. NBR pump body O-ring, AISI 316 stainless steel reinforcement ring nuts and screws. Butterfly filling and drain plugs that can be removed and refitted without tools.

CONSTRUCTION FEATURES OF THE MOTOR
Continuous service 2-pole asynchronous motor (S1) with a wide power range, from 0,5 HP to 3 HP, both single and three phase (see technical specifications). Die cast aluminium motor casing with cataphoresis paint coating to avoid oxidation also in aggressive environments. Support base supplied with rubber feet to reduce vibrations. Single phase version with built-in thermal and current protection, and permanent split capacitor (PSC) inside the terminal box for all versions.

More Information
SKU	60118029
Manufacturer	DAB
Manufacturers Warranty	2 Years
Weight	17.0 Kg
Dimensions	351mm (h) x 552mm (w) x 245mm (d)
Connection Type	2 Inch BSP Female
Motor Size (kW/W)	0.5kW
Full Load Current (FLC)	5A
Voltage	240V 1Ph 50Hz
Max Flow	21m3/hr
Max Head	14m
Max Pressure	1.4 Bar
Max Temperature	60°C
Material	Plastic
