DAB Evosta2 SAN R 11-85 (1/2") Domestic Heating Circulator Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

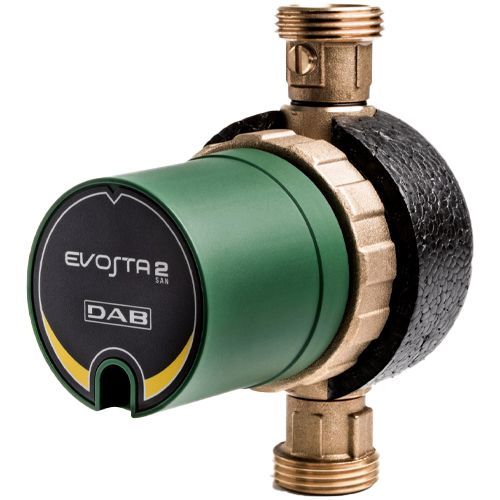

DAB Evosta2 SAN R 11-85 (1/2") Domestic Heating Circulator Pump 240v - 60187267
APPLICATIONS
Low energy consumption electronic pump for domestic hot water circulation.
ADVANTAGES
The new range of EVOSTA 2 SAN circulators by DAB combines the strength of a mechanical circulator with the benefits of an electronic circulator. Thanks to the permanent magnet synchronous motor, the frequency converter, as well as the protection class IPX5 and the integrated bleeding plug, the EVOSTA 2 SAN family ranks as one of the best products in the category in terms of performance and reliability. The range of EVOSTA 2 SAN circulators is the perfect replacement for old three-speed circulators due to its compact size and all-round performance. The product is also extremely user-friendly, with a single button for sequential setting and direct access to the motor shaft for unlocking it when necessary.
CONSTRUCTION FEATURES
Self-protected synchronous motor with spherical rotor requiring just one seal ring between the motor and the pump body. Easy to clean or replace. Brass pump body with R ½” (G ½”) internal thread in the R version, or with check valve and isolation valve supplied as standard in version V for connector with ½” external thread (G 1”).
CONTROL PANEL
The settings of EVOSTA 2 SAN circulators can be modified in the control panel on the faica of the pump. The pump has nine settings that can be selected scrolling the MODE button. Six illuminated segments on the display indicate the settings of the pump.
| SKU | 60187267 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 5 Years |
| Weight | 3.0 Kg |
| Dimensions | 139mm (h) x 100mm (d) x 72mm (w) |
| Connection Type | 1 Inch BSP |
| Full Load Current (FLC) | 0.07A |
| Voltage | 240V 1Ph 50Hz |
| Cable Length | 1.5m |
| Max Flow | 60l/m |
| Max Head | 1m |
| Max Pressure | 10 bar |
| Max Temperature | 75°C |
| Material | Cast Iron |
| Manufactured In | Italy |
