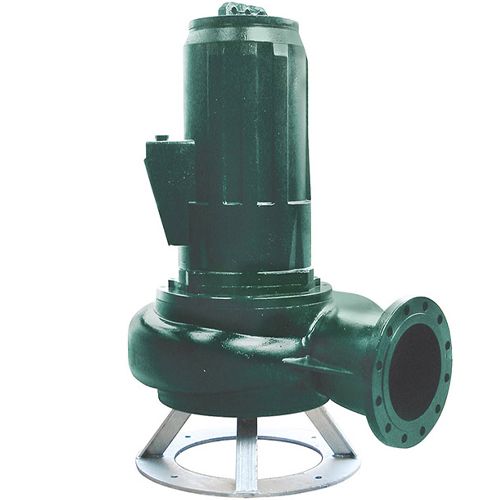

DAB FEKA 8250.6T S/D Submersible Wastewater Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Submersible electric pump for civil and industrial drain water compatible with the pump materials. Suitable for lifting or decanting loaded cesspool water, sewage water in systems with grids from cesspools, meteoric water, or dirty water in general, containing solid non-filamentous matter with diameter up to 80 mm.
CONSTRUCTION FEATURES OF THE PUMP
Three-channel impeller with rotating and fixed wear ring on the diffuser.
Flanged delivery port, EN 1092-1, DN 200 PN 16.
Double SiC/SiC mechanical seal in oil chamber on the motor side, Carbon/Steel mechanical seal on the pump side.
CONSTRUCTION FEATURES OF THE MOTOR
Dry, asynchronous and waterproof motor, cooled by the surrounding liquid. Continuous S1 duty with completely submerged pump. Rotor mounted on permanently lubricated ball bearings, oversized to ensure long-term reliability and extended lifetime. Water infiltration sensor in oil chamber, capable of indicating water infiltrations through the mechanical seal (standard). Overtemperature sensors in the motor windings, with 150 °C tripping threshold.
Standard voltage: 3x400V~. For other models contact our commercial department.
Start-up type: star-triangle (Y/∆)
Number of poles: 6
Motor protection class: IP 68
Insulation class: F
Max starts/hour: 20
| SKU | 60141739 |
|---|---|
| Weight | 465.0 Kg |
| Dimensions | 1200mm (h) x 640mm (d) |
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 200mm Flanged |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 600m3/hr |
| Max Head | 14m |
| Full Load Current (FLC) | 36A |
| Motor Size (kW/W) | 13.5kW |
| Immersion Depth | 20m |
