DAB FEKA FXC 25.07 MNA 230/50 Submersible Wastewater Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below

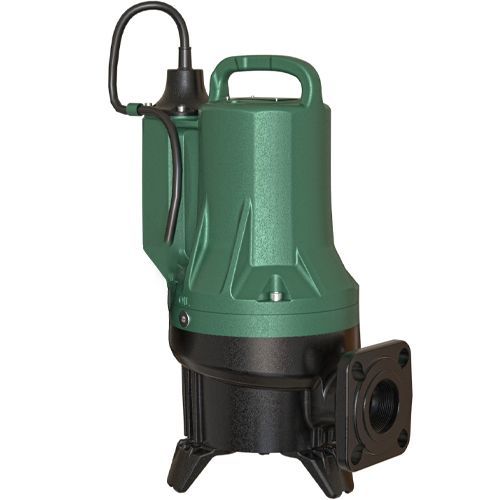

DAB FEKA FXC 25.07 MNA 230/50 Submersible Wastewater Pump 240v - 60191214
Feka FXC is a submersible pump for the drainage of sewage in commercial building service. The pump is certified according to the wastewater standard EN 12050-2. Pump suitable for fixed installations with a coupling device or mobile if placed directly on the bottom of the tank. Suitable for waste water without long fibers, rainwater and ground water. The pump is suitable for draining rooms subject to flooding, when high flow rates are required. The pump is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components. Automatic versions with power up to 1.5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb).
CONSTRUCTION FEATURES OF THE PUMP
Channel impeller with anti-lock system, 50 mm free passage. Pump body and impeller in cast iron. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid. Delivery port both flanged and threaded.
CONSTRUCTION FEATURES OF THE MOTOR
Available with single-phase asynchronous motor (MA / MNA versions) and three-phase motor (TNA versions). Rotor mounted on lubricated bearings. Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor windings with intervention threshold at +130°C. Quick-bonded resin-bonded cable gland, 07RN8-F power cable. Single-phase versions with integrated capacitor, available with float for automatic operation (MA version) with power up to 1.5 kW. In the three-phase motors the over-temperature sensor connection is responsibility of the user.
| SKU | 60191214 |
|---|---|
| Weight | 37.0 Kg |
| Dimensions | 468mm (h) x 322mm (dia) |
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 2 1/2 Inch Flanged |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 44m3/hr |
| Max Head | 9m |
| Full Load Current (FLC) | 4.1A |
| Motor Size (kW/W) | 0.9kW |
| Cable Length | 10m |
| Immersion Depth | 20m |
