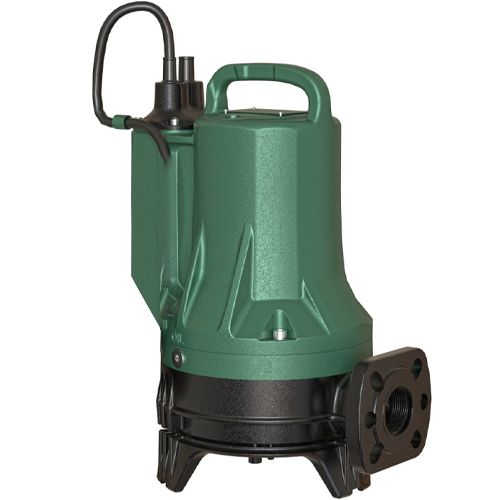

DAB Grinder FX 15.22 TNA Submersible Wastewater Pump 415v - 60191279
Grinder FX is a submersible pump with shredder designed for the drainage of waste water coming from drains in civil and commercial environments. The pump is certified according to the wastewater standard EN 12050-1. Pump suitable for fixed installations with a coupling device or mobile if placed on a base directly on the bottom of the tank. Thanks to the high-strength grinder, the pump is suitable for installations with small-diameter pipes or those requiring high pressures. The pump is designed for quick maintenance thanks to a constructive solution that provides easy access to the main components of the pump. Automatic versions with power up to 1.5 kW. ATEX version available for use in potentially explosive environments. (ATEX certifications: II2G Ex db k IIB T4 or IEC EX: Ex db IIB T4 Gb).
CONSTRUCTION FEATURES OF THE PUMP
Pump body and impeller in cast iron, shredder in AISI 630. Motor shaft in AISI 304 stainless steel. Double mechanical seal in SiC-SiC/SiC-C in oil chamber not in contact with the pumped liquid, independent of the direction of rotation. Delivery port both flanged and threaded.
CONSTRUCTION FEATURES OF THE MOTOR
Single-phase asynchronous motor (MA / MNA versions) and three-phase version motor (TNA versions). The rotor is mounted on lubricated bearings. Continuous operation in S1 with the motor completely immersed. Dry running for a maximum time of 10 minutes. Over-temperature sensors in the motor windings with intervention threshold at +130°C. Quick-bonded resin-bonded cable gland, 07RN8-F power cable. Single-phase versions with starter and capacitor in a separate panel, MA versions with float for automatic operation. In the three-phase motors the over-temperature sensor connection is responsibility of the user.
| SKU | 60191279 |
|---|---|
| Weight | 39.0 Kg |
| Dimensions | 430mm (h) x 306mm (dia) |
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Material | Cast Iron |
| Impeller Material | Cast Iron |
| Connection Type | 1 1/2 Inch BSP Female |
| Voltage | 415V 3Ph 50Hz |
| Max Flow | 19m3/hr |
| Max Head | 33m |
| Full Load Current (FLC) | 4.7A |
| Motor Size (kW/W) | 2.6kW |
| Cable Length | 10m |
| Immersion Depth | 20m |
