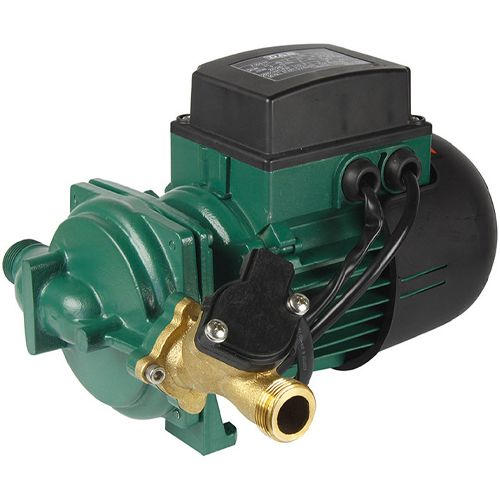

DAB K 20/9 HA Centrifugal Pressure Boosting Pump 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
K-HA single impeller centrifugal pump is designed for water pressure boosting in households, flats (domestic properties) to provide additional pressure to hot and cold water taps and similar outlet points. K-HA centrifugal pump is mainly for use in open vented systems(tanks), but may also be installed directly on the incoming water mains supply to feed a boiler, provided approval has been obtained from the local Water Company. The pump incorporates a flow switch which starts and stops the pump according to flow when a tap is opened or closed. The pump is supplied with a 0,3 meter power cable.
CONSTRUCTION FEATURES OF THE PUMP
- Cast iron pump body and motor support with cataphoresis coating.
- Brass flow switch body.
- Technopolymer impeller.
- Carbon / ceramic mechanical seal.
PLUS
- Flow switch in brass, directly assembled on the delivery port of the pump body (45° from vertical)
- Automatic (by flow switch) or manual operating modes
- Easy way fixing bracket
- Rubber foot to increase pump stability
- Silent operating
CONSTRUCTION FEATURES OF THE MOTOR
Induction motor, closed and cooled with external ventilation.
Rotor mounted on oversized greased sealed-for-life ball bearings to ensure silent running and long life.
Built-in thermal and current overload protection and a capacitor permanently in circuit.
Motor protection: IP 44.
Insulation class: F.
Standard voltage: single phase ~220V / 50 Hz.
Motor construction in conformity with standards CEI 2-3 - CEI 61-69 (EN 60335-2-41).
| SKU | 60161484 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 5.0 Kg |
| Dimensions | 172mm (h) x 253mm (w) x 231mm (d) |
| Connection Type | 3/4" BSP Male |
| Motor Size (kW/W) | 0.03kW |
| Full Load Current (FLC) | 0.82A |
| Voltage | 240V 1Ph 50Hz |
| Max Flow | 2m3/hr |
| Max Head | 9m |
| Max Pressure | 0.9 Bar |
| Max Temperature | 100°C |
| Material | Cast Iron |
