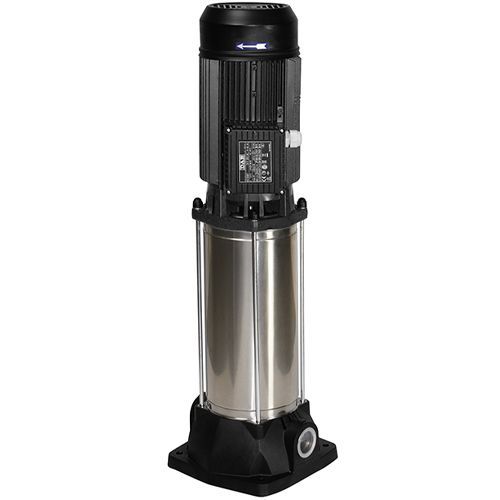

DAB KVC 40-50 M Multi-Stage Centrifugal Pump 240v

Name: DAB KVC 40-50 M Multi-Stage Centrifugal Pump 240v
Brand: DAB
SKU: 102990120
Price: 459 GBP
Availability: InStock

SKU

102990120

MRRP £655.00 + VAT Our price £459.00 (+ VAT) Incl. VAT: £550.80

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

APPLICATIONS
Vertical multistage centrifugal pump suitable for small to medium user water systems. Suitable for pressurization units, filling of pressure vessels, sprinkler and watering systems, fire-fighting and washing systems, channelling of condensate and cooling water. Innovative and robust design.

CONSTRUCTION FEATURES OF THE PUMP
KVC: Technopolymer delivery and suction bodies, and in-line suction and delivery ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; stainless steel threaded delivery port on pump liner.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof. AISI 304 stainless steel pump liner, adjustment rings and seal disc. Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.

CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. Overload protection to be provided by the user for the three-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).

More Information
SKU	102990120
Manufacturer	DAB
Manufacturers Warranty	2 Years
Weight	16.0 Kg
Dimensions	505mm (h) x 235mm (w) x 221mm (d)
Inlet Dimension	1 1/4" BSPF
Discharge Dimension	1 1/4" BSPF
Motor Size (kW/W)	0.8kW
Full Load Current (FLC)	5.6A
Voltage	240V 1Ph 50Hz
RPM	2800rpm
Max Flow	4.5m3/hr
Max Head	55m
Max Pressure	5.5 Bar
Max Temperature	40°C
Manufactured In	Italy
