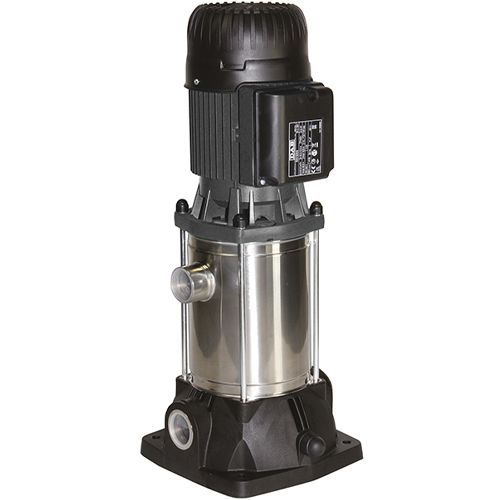

DAB KVCX 75-50 T-IE3 Multi-Stage Centrifugal Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
Vertical multistage centrifugal pump suitable for small to medium user water systems. Suitable for pressurization units, filling of pressure vessels, sprinkler and watering systems, fire-fighting and washing systems, channelling of condensate and cooling water. Innovative and robust design.
CONSTRUCTION FEATURES OF THE PUMP
KVC: Technopolymer delivery and suction bodies, and in-line suction and delivery ports with threaded metal insert.
KVCX: technopolymer suction body with threaded metal insert; stainless steel threaded delivery port on pump liner.
Impellers, diffuser bodies and diffusers in technopolymer, fully rust-proof. AISI 304 stainless steel pump liner, adjustment rings and seal disc. Carbon/ceramic mechanical seal, fitted on the AISI 303 stainless-steel drive shaft extension.
CONSTRUCTION FEATURES OF THE MOTOR
Closed asynchronous type, external ventilation cooling. Rotor running on permanently lubricated ball bearings, oversized to ensure low noise and durability. Standard built-in thermo-amperometric protection. Capacitor permanently fitted on single phase versions. Overload protection to be provided by the user for the three-phase version. Construction according to CEI 2-3 / CEI 61-69 (EN 60335-2-41).
| SKU | 60179917 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 21.0 Kg |
| Dimensions | 627mm (h) x 235mm (w) x 221mm (d) |
| Inlet Dimension | 1 1/4" BSPF |
| Discharge Dimension | 1 1/4" BSPF |
| Motor Size (kW/W) | 1.5kW |
| Full Load Current (FLC) | 6.6-3.8A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2800rpm |
| Max Flow | 4.5m3/hr |
| Max Head | 95m |
| Max Pressure | 9.5 Bar |
| Max Temperature | 40°C |
| Manufactured In | Italy |
