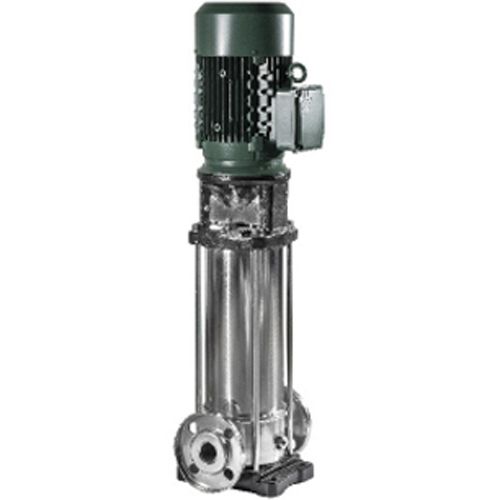

DAB NKV 1/3 S T-IE3 Multi-Stage Centrifugal Pump 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
APPLICATIONS
NKV are AISI 304 stainless steel multi-impeller vertical centrifugal pumps with coupling; designed for pressurization, conditioning and heating in civil and commercial environments, they can also be used in agriculture and in watering systems. The pumps can be used for the recirculation of water in heating and air conditioning systems.
CONSTRUCTION FEATURES OF THE PUMP - NKV 1-3-6-10-15-20 S
The use of advanced stainless steel processing technologies for the main hydraulic components helps to achieve very high performance levels. The pumps are also extremely versatile, thanks to the center distance of the in-line ports, designed to maximize interchangeability. The parts in contact with the liquid are made of AISI 304 stainless steel for NKV S models, or AISI 316 stainless steel for NKV X models (only available to special order). Round flanges as standard (oval, loose, virtual, clamp available on request). The mechanical seal is made of standard E1 = Graphite/Silicon Carbide/AISI 316/ EPDM = BQGE. FKM/Viton available on request. Starting from 5.5 kW models, the seal can be removed without removing the motor. Rigid coupling
CONSTRUCTION FEATURES OF THE PUMP - NKV 32-45-65-95
The use of advanced stainless steel processing technologies for the main hydraulic components helps to achieve very high performance levels. They are extremely versatile, thanks to the center distance of the in-line ports, designed to maximize interchangeability. Their pump body and upper flange are in cataphoretic paint coated cast iron; impellers, diffusers and pump liner made of AISI 304 stainless steel (AISI 316 stainless steel available on request - X version). Round flanges as standard (oval, loose, virtual, clamp available on request). The mechanical seal is made of standard E1 = Graphite/Silicon Carbide/AISI 316/EPDM = BQGE. FKM/Viton available on request. Starting from 5.5 kW models, the seal can be removed without removing the motor. Rigid coupling.
CONSTRUCTION FEATURES OF THE MOTOR
Standard mechanical seal E1 (= Graphite/ Silicon Carbide/AISI 316/EPDM) and on request among the various custom seals there are also with FKM/Viton. The seal can be dismantled without removing the motor from 5.5 kW. Rigid coupling. Motor frame B14 up to 4 kW motor size and B5 from 5,5 kW motor size.
| SKU | 60187823 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 18.0 Kg |
| Dimensions | 529mm (h) x 250mm (d) x 115mm (w) |
| Connection Type | 1 Inch Flanged |
| Motor Size (kW/W) | 0.37kW |
| Full Load Current (FLC) | 1A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2800rpm |
| Max Flow | 2.9m3/hr |
| Max Head | 22m |
| Max Pressure | 2.2 Bar |
| Max Temperature | 120°C |
| Material | Stainless Steel |
