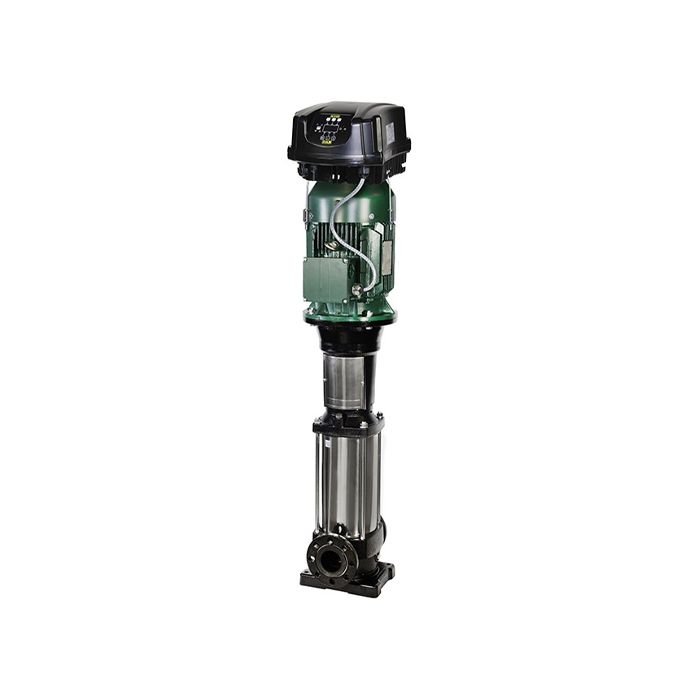

DAB NKVE 32/3-2 T MCE55/P-IE3 Multi-Stage Centrifugal Pump 415v

APPLICATIONS
NKVE are AISI 304 stainless steel multi-impeller vertical centrifugal pumps with coupling; with MCE-P variable frequency drive installed as standard. The pumps are designed for pressurization in civil and commercial environments, they can also be used in agriculture and in watering systems. Possibility of remote control with D.Connect (D.Connect Box supplied separately).

CONSTRUCTION FEATURES OF THE PUMP - NKV 1-3-6-10-15-20 S
The use of advanced stainless-steel processing technologies for the main hydraulic components helps to achieve very high-performance levels. The pumps are versatile, thanks to the center distance of the in-line ports, designed to maximize interchangeability. The parts in contact with the liquid are made of AISI 304 stainless steel for NKVE S models, or AISI 316 stainless steel for NKVE X models (only available on request). Round flanges as standard
(oval, loose, virtual, clamp available on request). The mechanical seal is made of standard E1 = Graphite/Silicon Carbide/AISI 316/EPDM = BQGE. FKM/Viton available on request. Starting from 5.5 kW models, the seal can be removed without removing the motor. Rigid coupling.

CONSTRUCTION FEATURES OF THE PUMP - NKV 32-45-65-95
The use of advanced stainless-steel processing technologies for the main hydraulic components helps to achieve very high-performance levels. They are extremely versatile, thanks to the center distance of the in-line ports, designed to maximize interchangeability. Their pump body and upper flange are in cataphoretic paint coated cast iron; impellers, diffusers and pump liner are made of AISI 304 stainless steel (AISI 316 stainless steel available on request – X version). Round flanges as standard (oval, loose, virtual, clamp available on request). The mechanical seal is made of standard E1 = Graphite/SiliconCarbide/AISI 316/EPDM = BQGE. FKM/Viton available on request. Starting from 5.5 kW models, the seal can be removed without removing the motor. Rigid coupling.

CONSTRUCTION FEATURES OF THE MOTOR
Standard mechanical seal E1 (= Graphite/ Silicon Carbide/AISI 316/EPDM) and on request among the various custom seals there are also with FKM/Viton. The seal can be dismantled without removing the motor from 5.5 kW. Rigid coupling. Motor frame B14 up to 4 kW motor size and B5 from 5,5 kW motor size.
