DAB Nova 600 TNA 40th Anniversary Edition 400/50 10H07 Submersible Pump 415v [Bundle Kit]

Name: DAB Nova 600 TNA 40th Anniversary Edition 400/50 10H07 Submersible Pump 415v [Bundle Kit]
Brand: DAB
SKU: 60196306H-KIT
Price: 282 GBP
Availability: InStock

SKU

60196306H-KIT

MRRP £320.00 + VAT Our price £282.00 (+ VAT) Incl. VAT: £338.40

BEST ONLINE PRICES

FREEPHONE 0800 112 3134 if you've seen it cheaper.

Installation Bundle

Choose Hose Option

Qty

Order within

Hours

Mins

Secs

for next day delivery *i

* Available where Guaranteed Stock Icon Appears Below

Overview & Spec

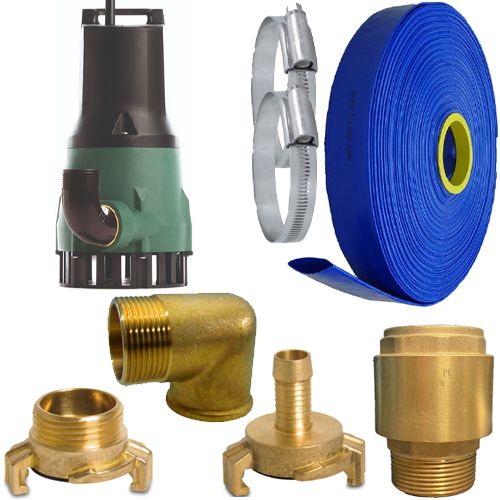

Bundle Kit - Everything you need to get going, with a convenient carry crate to store it.

DAB Nova 600 TNA
x2 Stainless Steel Suction Hose Clips - 1 1/4"
Profec Brass Quick Coupler with Male Thread - 1 1/4"
Profec Brass Quick Coupler with Hose Tail 1 1/4"
Brass Male-to-Female Non-Return Valve 1 1/4"
Brass Male-to-Female Elbow 1 1/4"
10m Blue Layflat Hose - 1 1/4"

DAB Nova 600 TNA 40th Anniversary Edition 400/50 10H07 Submersible Pump 415v - 60196306H

Nova is a submersible pump for draining clear water in domestic and residential environments. Completely redesigned in 2019 for the forty years of sales edition, it is now even more durable, reliable and ergonomic in use. Nova can also be used for emptying tanks or cisterns.

CONSTRUCTION FEATURES OF THE PUMP

The pump body, the impeller and the suction grille are in technopolymer. Robust and reliable with triple sealing in oil bath. The pump allows the suction of the liquid up to the minimum level of 10 mm and the possibility of dry operation up to 1 minute.

CONSTRUCTION FEATURES OF THE MOTOR

Continuous duty asynchronous submersible motor. Stator inserted in a hermetic stainless steel casing and rotor mounted on oversized ball bearings. Thermal protection incorporated in all single-phase versions. The motor is in AISI 304 stainless steel and the shaft is in AISI 431 steel for greater resistance to corrosive attacks.

More Information
SKU	60196306H-KIT
Weight	10.0 Kg
Dimensions	329mm (h) x 163mm (d)
Manufacturer	DAB
Manufacturers Warranty	2 Years
Material	Plastic
Connection Type	1 1/4 Inch BSP Female
Voltage	415V 3Ph 50Hz
Max Flow	15m3/hr
Max Head	10.3m
Full Load Current (FLC)	1.7A
Motor Size (kW/W)	0.66kW
Cable Length	10m
