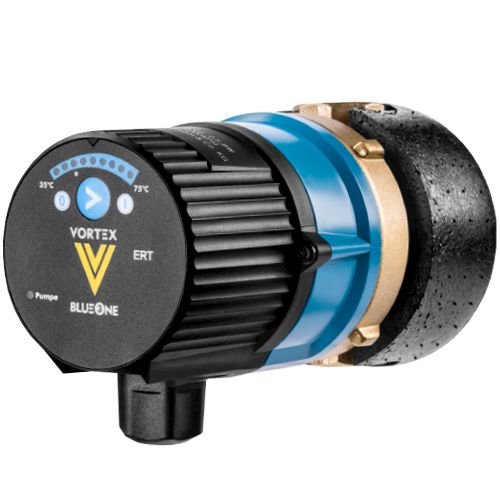

DAB Vortex BWO 155V Electronic Thermostat (1 1/4") Hot Water Circulator 240v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
PUMP HOUSING
V-pump housing
1 1/4" male connection thread; fitting set, with 1/2" male screw/solder fitting/ø 15 mm female, non-return valve, cut-off valve, insulation shell.
R-pump housing
1/2" female connection thread, insulation shell.
DRIVE
Permanent magnet drive
The BlueOne DHW circulation pump generation is driven by a highly efficient, electronically commutated DC motor. A voltage transformer is integrated in the module cap for AC operation. All pumps have continuous manual speed adjustment.
Spherical motor technology
The shaftless spherical motor does not feature a revolving bearing shaft. Instead, the stator transfers the rotating magnetic field directly to the permanent magnet rotor on a fixed bearing pin. The rotor bearing is self-adjusting and lubricated by the water. The rotor thus runs with zero play and is virtually noise free. Water carrying parts can be easily cleaned if necessary. The rotor can be replaced when required.
CONTROL MODULE
ERT - ELECTRONIC CONTROL THERMOSTAT
The thermostat switches off the pump at the set temperature. The shutdown temperature is set using a pushbutton and is immediately active.
- Shutdown temperature adjustable in 5° increments from 35 °C to 75 °C
- Start point 7 K below the shutdown temperature
| SKU | 433111061 |
|---|---|
| Manufacturer | DAB |
| Manufacturers Warranty | 2 Years |
| Weight | 3.0 Kg |
| Voltage | 240V 1Ph 50Hz |
| RPM | 2000-3000 |
| Max Flow | 950 l/h |
| Max Head | 1.3m |
| Max Pressure | 10 bar |
| Max Temperature | 95°C |
| Manufactured In | Germany |
