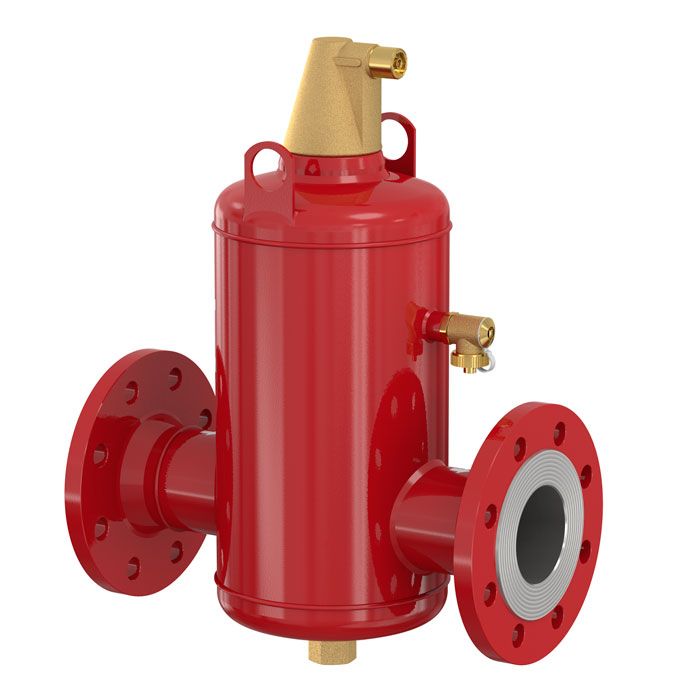

Flamcovent Smart 125F - 5" Flanged Inline Air Separator 10 Bar
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Optimum deaeration combined with energy retention. For total elimination of air from heating and cooling installations. Air separators increase comfort and improve the yield. Air separators also offer benefits in the event of application in old systems or when an open system is converted to a closed system.
- Increases comfort and yield.
- The removal of air from the system water extends the service life of pumps, control equipment and other system accessories.
The new steel Flamcovent Smart air separators remove even the tiniest micro-bubbles from the installation water. The Smart performs 60% better than conventional air separators whilst the flow resistance has been reduced to a negligible level.
- With flanged connection according to EN 1092-1 PN16.
- Up to 60% better performance compared to conventional air separators.
- Extremely low flow resistance resulting in less energy consumption.
- Standard flow speed up to 3 m/s.
- Low maintenance
- Constant performance during the entire lifespan.Low maintenance.
| SKU | 31006 |
|---|---|
| Manufacturer | Flamco |
| Manufacturers Warranty | 1 Year |
| GTIN | 08712874310063 |
| Weight | 48.0 Kg |
| Dimensions | A - 740mm B - 635mm C - 510mm D - 360mm |
| Outer Diameter | 139.7 mm |
| Inner Diameter | 5 Inch |
| Separator Type | Air Only |
| Connection Type | 5 Inch Flanged |
| Max Flow | 166.25 m³/h |
| Max Pressure | 10 Bar |
| Pressure Drop Over Product | 1 Bar |
| Kv Product Flow Rate | 459 |
| Suitable for Cooling | Yes |
| Suitable for Heating | Yes |
| Suitable for Closed System | Yes |
| Material | Stainless Steel |
| Filter Mesh Density | 0mm |
| Filter Volume | 59L |
| Max Temperature | Max Flow Temperature of 120 °C |
| Surface Protection | Untreated |
