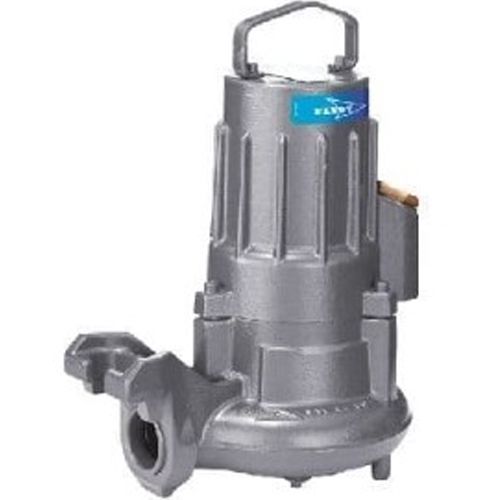

Flygt D3045 Medium Head DF 230 1.2kW Submersible Sewage Pump With Vortex Impeller 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Flygt D3045 Medium Head DF 230 1.2kW Submersible Sewage Pump With Vortex Impeller 415v - DF-3045.181-MT.230.1.2kW
The Flygt D 3045 vortex pump is designed for high reliability. The impeller does not require adjustment and runs freely in the volute, providing free flow-through passage of solids and liquids. This completely eliminates the risk of clogging and low performance that results from faulty impeller adjustments and wear.
Engineered for demanding environments, the Flygt D 3045 easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.
The vortex design gives reduced radial forces on the impeller and shaft, which enables operation at very low flows or close to the shut-off head for extended periods without any damage or requirement for maintenance.
All components are specially designed and manufactured to optimize operation and prolong pump service life.
Features:
- double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
- cast iron. Robust and durable
- spin-out design protect seals from abrasive particles
- motor cable SUBCAB specially developed for wasterwater applications

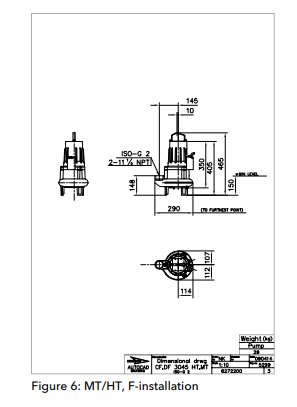

- DF installation - free standing semi permanent, wet well arrangement where the pump is placed on a firm surface
- 230 impeller
- medium head
- maximum depth of immersion - 20 metres
**Warm water version available, max liquid temperature 70°C, please contact office**
| SKU | DF-3045.181-MT.230.1.2kW |
|---|---|
| Manufacturer | Flygt |
| Manufacturers Warranty | 2 Years |
| Weight | 28.0 Kg |
| Dimensions | 465mm (h) x 290mm (w) |
| Motor Size (kW/W) | 1.2kW |
| Full Load Current (FLC) | 2.8A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2785rpm |
| Cable Length | 10 Metres |

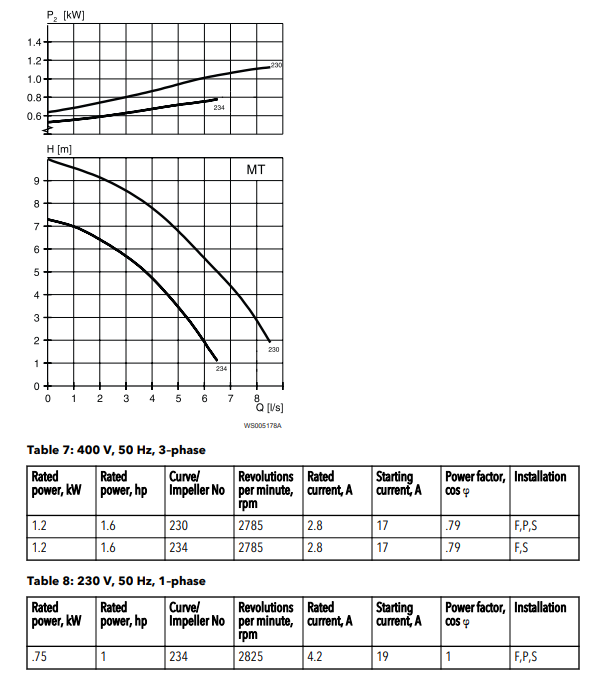

| Max Flow | 8 l/sec |
| Max Head | 10m |
| Max Temperature | 40°C |
| Material | Cast Iron |
| Impeller Material | 230 |
