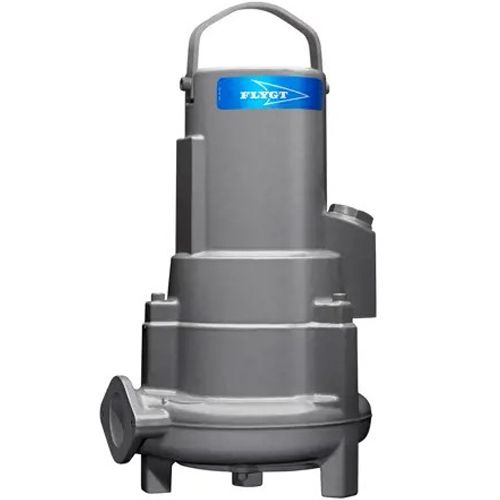

Flygt D3069 High Head DX 252 50mm 1.7kW Submersible Sewage Pump With Vortex Impeller 415v
BEST ONLINE PRICES
FREEPHONE 0800 112 3134 if you've seen it cheaper.
* Available where Guaranteed Stock Icon Appears Below
Flygt D3069 High Head DX 252 50mm 1.7kW Submersible Sewage Pump With Vortex Impeller 415v - DX-3069.180-HT.252.1.7kW
The Flygt D 3069 vortex pump is designed for high reliability. The impeller does not require adjustment and runs freely in the volute, providing free flow-through passage of solids and liquids. The risk of clogging or low performance is completely eliminated. Engineered for demanding environments, the Flygt D 3069 easily transports media for municipal sewage, industrial wastewater and a wide range of other applications.
The vortex design gives reduced radial forces on the impeller and shaft, which enables operation at very low flows or close to the shut-off head for extended period of time without any damage or requirement for maintenance. All components are specially designed and manufactured to optimize operation and prolong pump service life.
Features:
- cast iron body - robust and reliable
- free flow-through passage
- reduced wear
- low maintenance requirements
- handles sludge concentration up to 4% of dry solids
- double mechanical seal system. Two sets of mechanical shaft seals work independently to provide double security. Available in Tungsten Carbide (WCCR) or Silicone Carbide (SiC) depending on pumped media
- spin-out design protect seals from abrasive particles
- motor cable SUBCAB specially developed for wastewater applications
- DX installation - optional installation, wet or dry well arrangement without predetermined mechanical connection and with drilled flanges. Dry well arrangement requires cooling system or de-rated motor
- 252 impeller
- high head
- maximum depth of immersion - 20 metres
**Warm water version available, max liquid temperature 70°C, please contact office**
| SKU | DX-3069.180-HT.252.1.7kW |
|---|---|
| Manufacturer | Flygt |
| Manufacturers Warranty | 2 Years |
| Weight | 37.0 Kg |

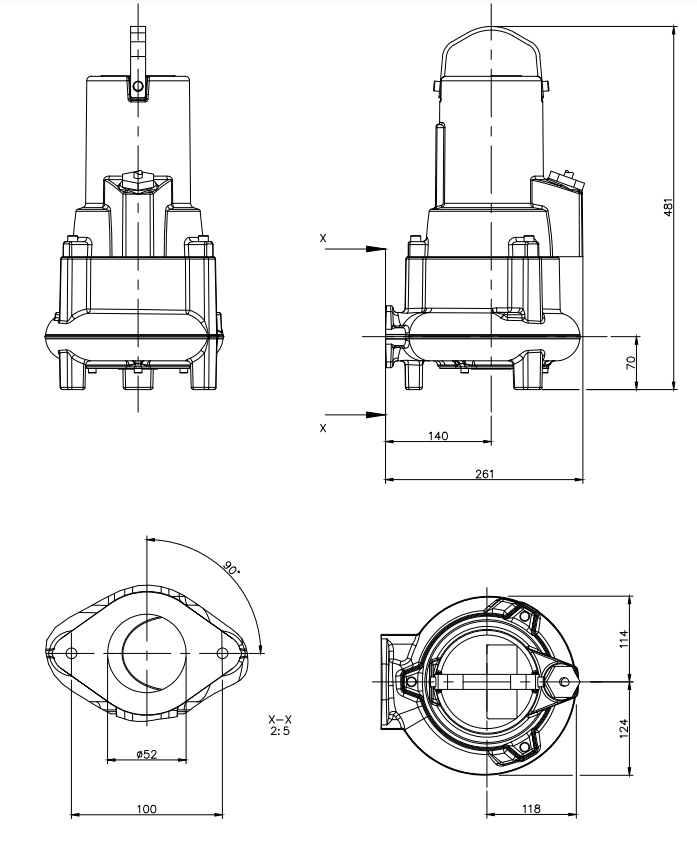

| Dimensions | 481mm (h) x 261mm (w) |
| Connection Type | 50mm Flanged |
| Motor Size (kW/W) | 1.7kW |
| Full Load Current (FLC) | 5.1A |
| Voltage | 415V 3Ph 50Hz |
| RPM | 2775rpm |
| Cable Length | 10 Metres |
| Max Flow | 8 l/sec |
| Max Head | 10m |
| Max Temperature | 40°C |
| Material | Cast Iron |
| Impeller Material | 252 |
